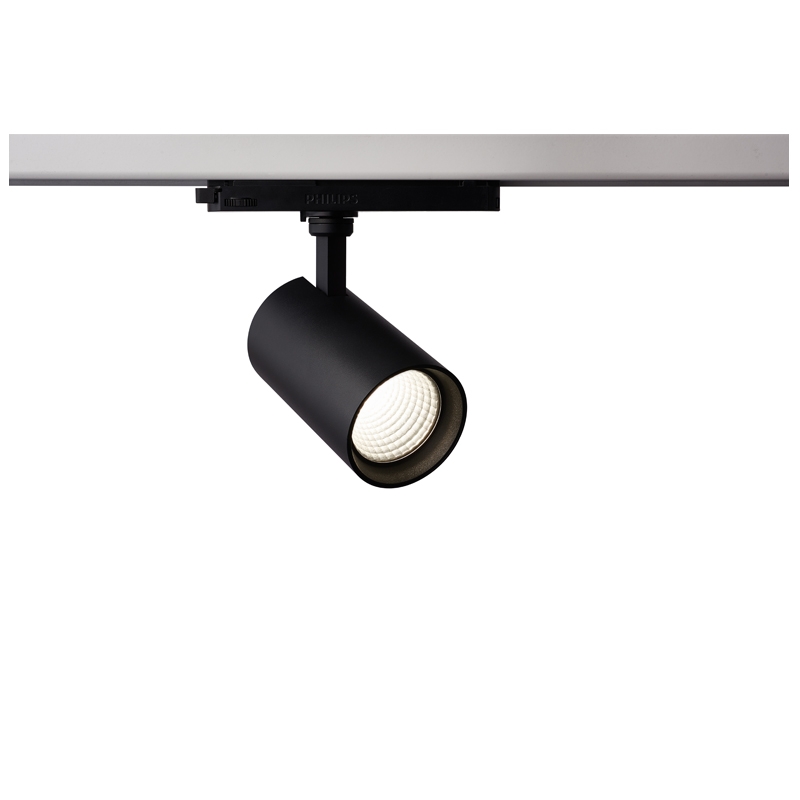

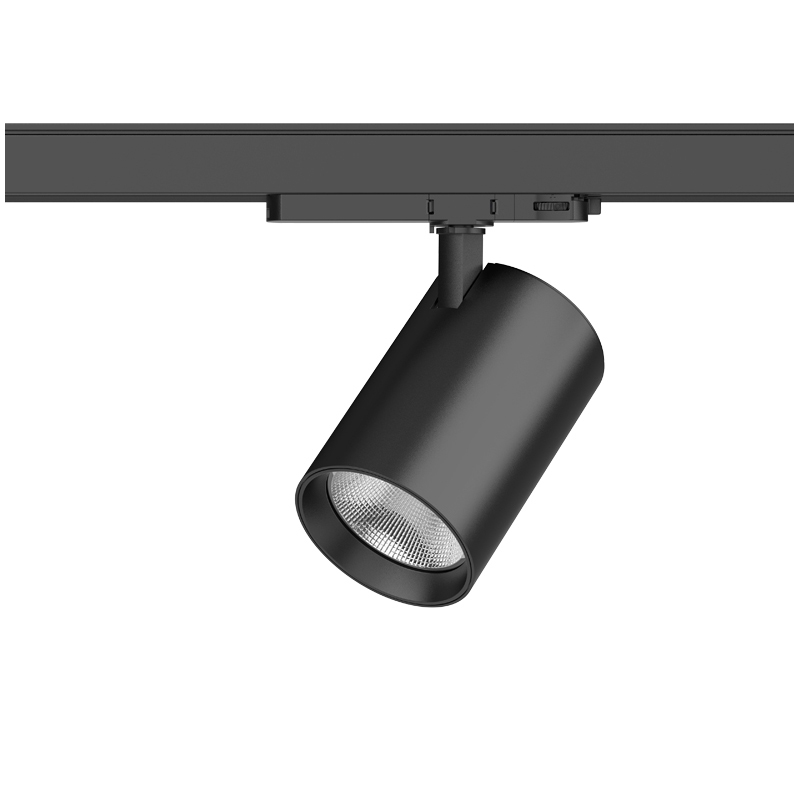

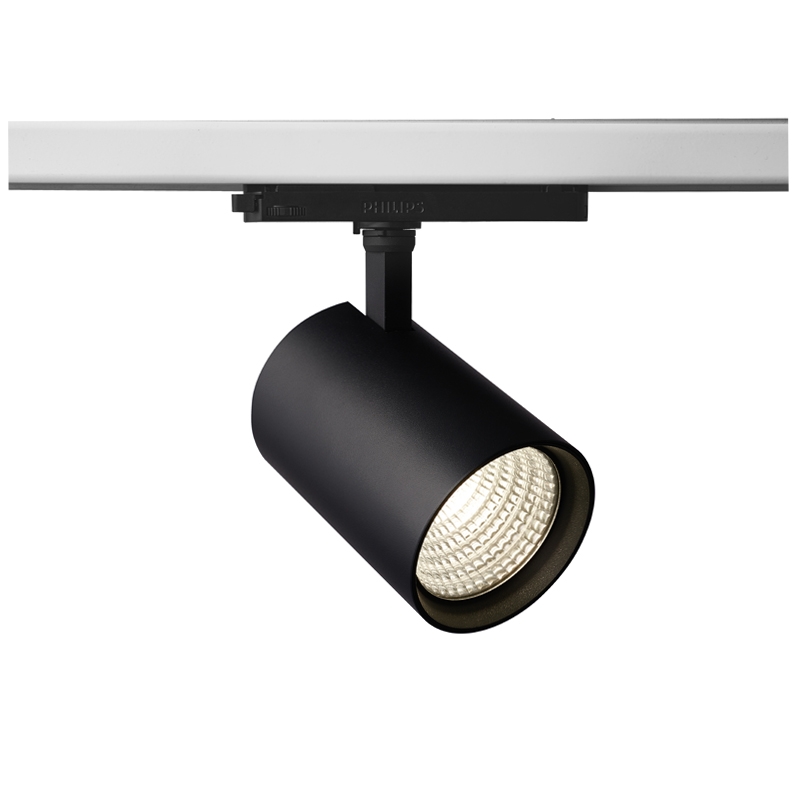

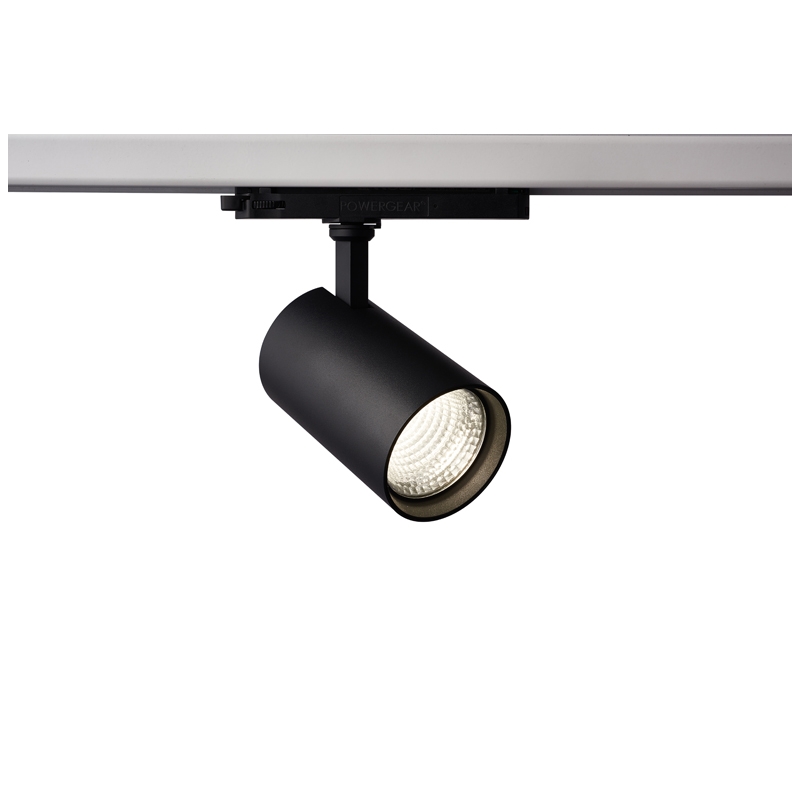

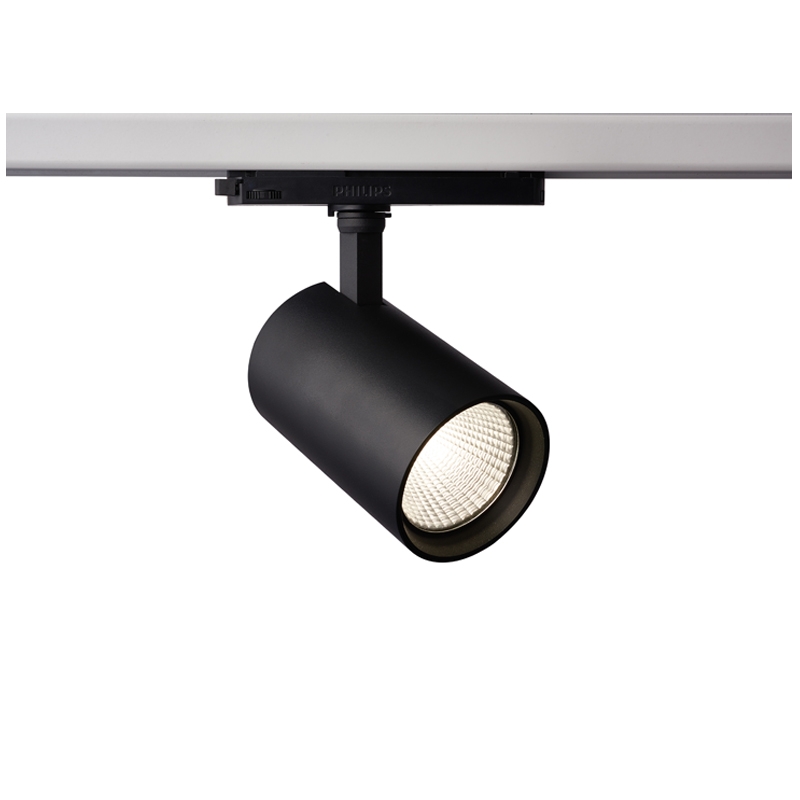

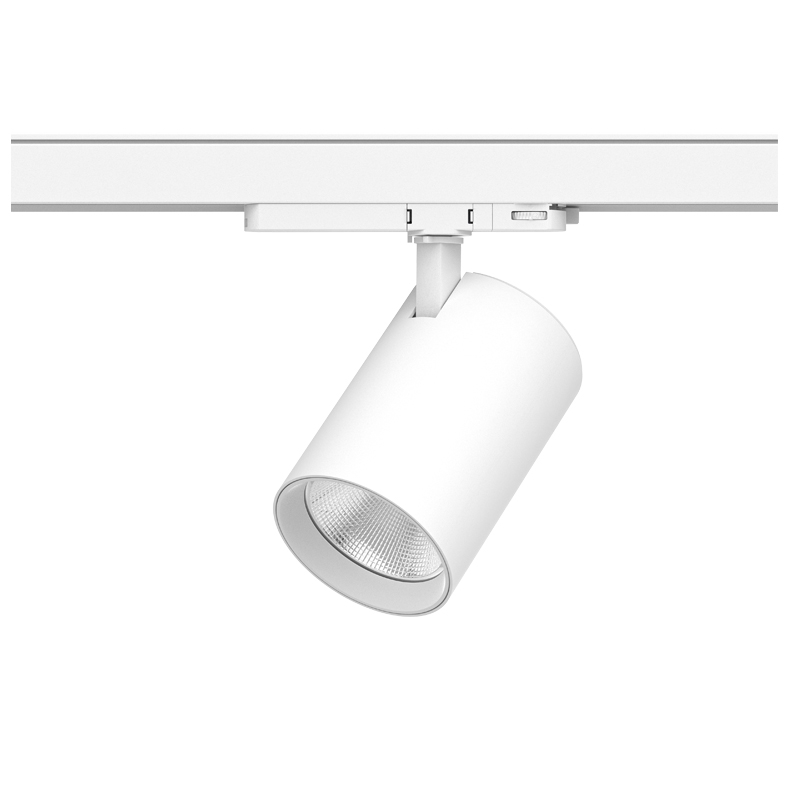

TLF Track Light originally researched and developed by OPTE,high-end spotlight with PHILIPS Integrated driver and Bridgelux COB, With Simple and elegant design cold forging aluminum body with excellent heat dissipation,Advanced design of ultra-thin hybrid optical lens,with first-rate lighting control effect, various beam angle 15°, 24°, 38°, 60° for option,stable specifications, glare-free,brilliant quality, more than 50,000 hours life span.
|
Model No. |
Input voltage(V) |
Power (w) |
LED Chip |
Luminous flux (lm) (±5%) |
Beam angle(o) |
CCT (K) |
CRI |

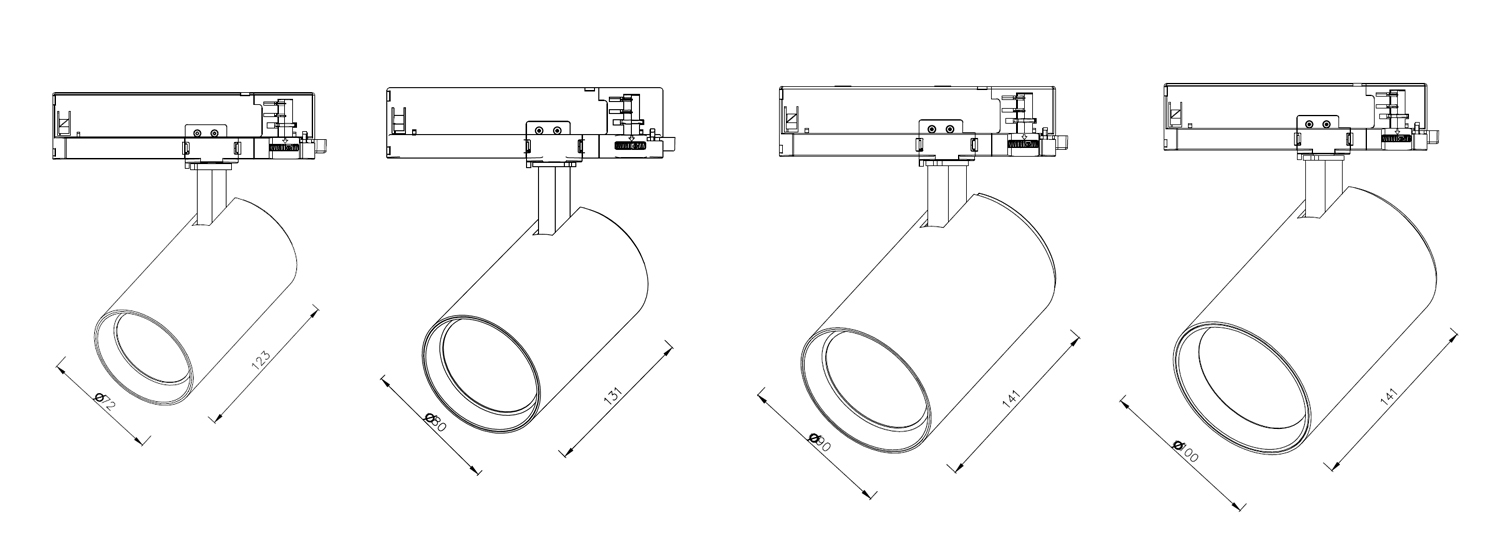

Size (mm) |
|
OP-TLF25W (IG) |
AC220-240V |
25W |
Bridgelux |
3200LM |
15, 24, 38,60 |
2700K 3000K 4000K 5000K |
90+ |
D72 H123mm |
|
OP-TLF30W (IG) |
AC220-240V |
30W |
Bridgelux |
3900LM |
15, 24, 38,60 |
2700K 3000K 4000K 5000K |
90+ |
D80 H131mm |
|
OP-TLF35W (IG) |
AC220-240V |
35W |
Bridgelux |
4500LM |
15, 24, 38,60 |
2700K 3000K 4000K 5000K |
90+ |
D90 H141mm |
|
OP-TLF40W (IG) |
AC220-240V |
40W |
Bridgelux |
5200LM |
15, 24, 38,60 |
2700K 3000K 4000K 5000K |
90+ |
D100 H141mm |
