GU10 Downlight Fixture Fire proof

For MR16 lamps with Gu10 cap
Cut hole ∮77(-0/+2)mm
Max Power is 7W
Easy for Installation
Replacing Conveniently
Long performance Life
Widely Used in Hotel, Home and many other indoor place
Replaced traditional Halogen 50W


    Light source Max 7W LED Light source
    Voltage 230V

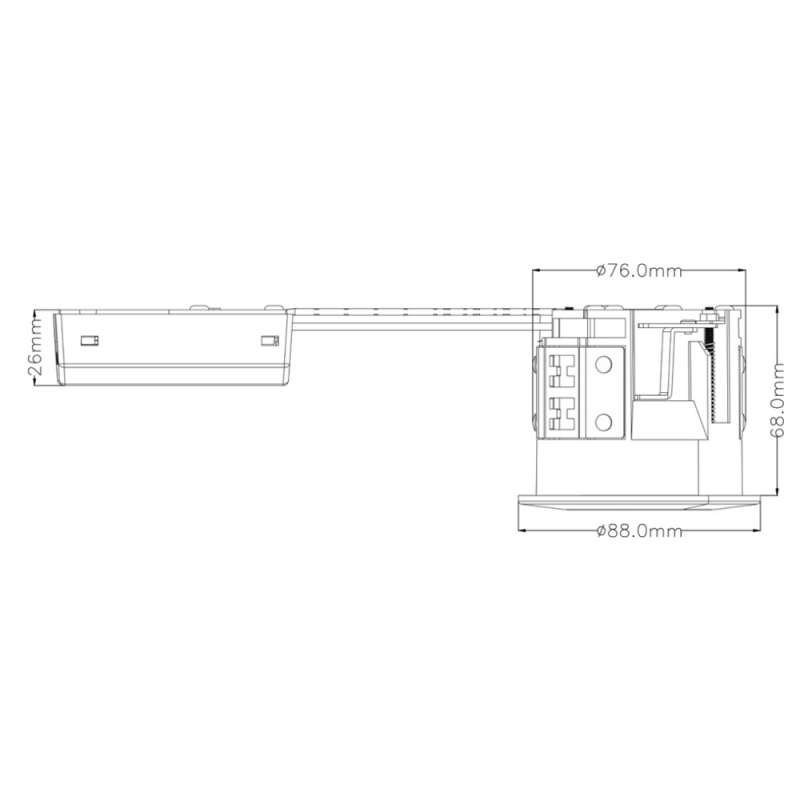

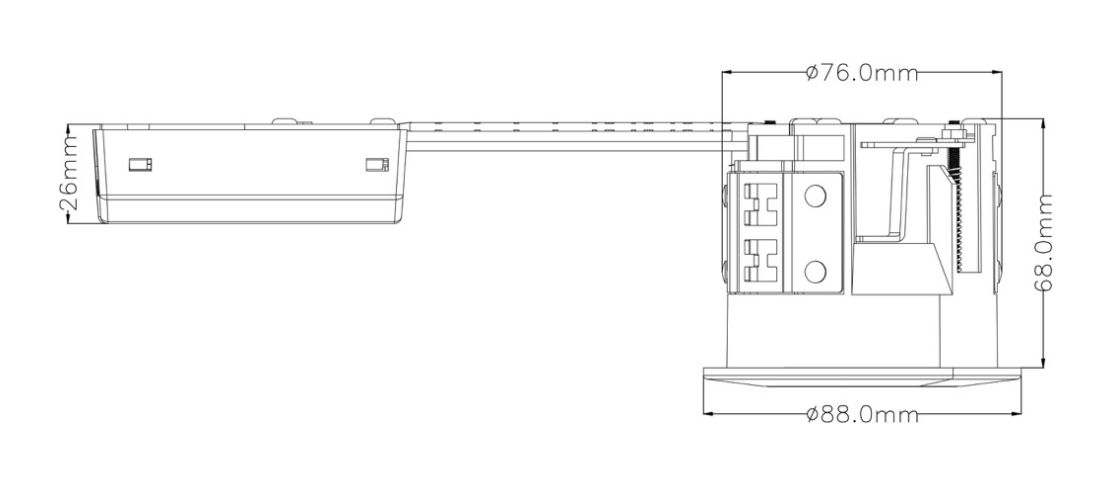

    Cut-out hole 76 mm
    Installation height 68 mm
    The outer dimension of the lamp is 88 mm
    IP Classification IP 21/44 (Approved for outdoor installation)
    Marking / CE
    Mounting Directly in the insulation without the use of a spacer
    Density Meets requirements for air tightness in accordance with BBR
    Usable cables Ordinary 60 ° cables, however 90 ° cables if the cables touch the lamp cylinder
    Ceiling thickness Adjustable springs allow mounting in different ceiling thicknesses
    Looping
    Spring clamps allow for looping of up to one
    5Gx1.5 mm2 conductor cable

    Remember to treat the front with acid-free oil or similar treatment for stainless surfaces - this should be done 1 to 2 times a year.
