DLC LED Downlight

Wattage : 9W 12W 15W 20W 25W 30W 35W 40W 45W 50W

Driver : LIFUD PHILIPS

LED : OSRAM COB BRIDGELUX COB

Voltage :AC 220-240V AC100-277V

Lumen efficiency : 100LM/W

Color Temp. 2700K 3000K 3500K 4000K 5000K or Food Lighting

CRI : >90Ra >97Ra

Housing material : Aluminum
Color ： Matt White Matt Black

Lamp Certificates: CE ROSH SAA

Warranty : 5 Years

Delivery time : 3-4 days for sampes ,7-15 days for bulky orders

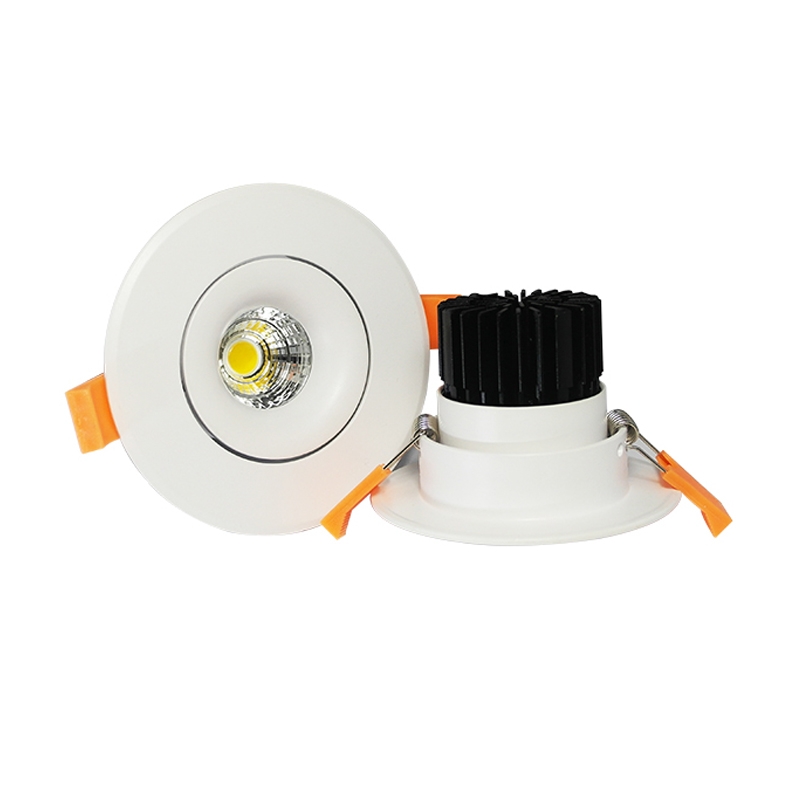

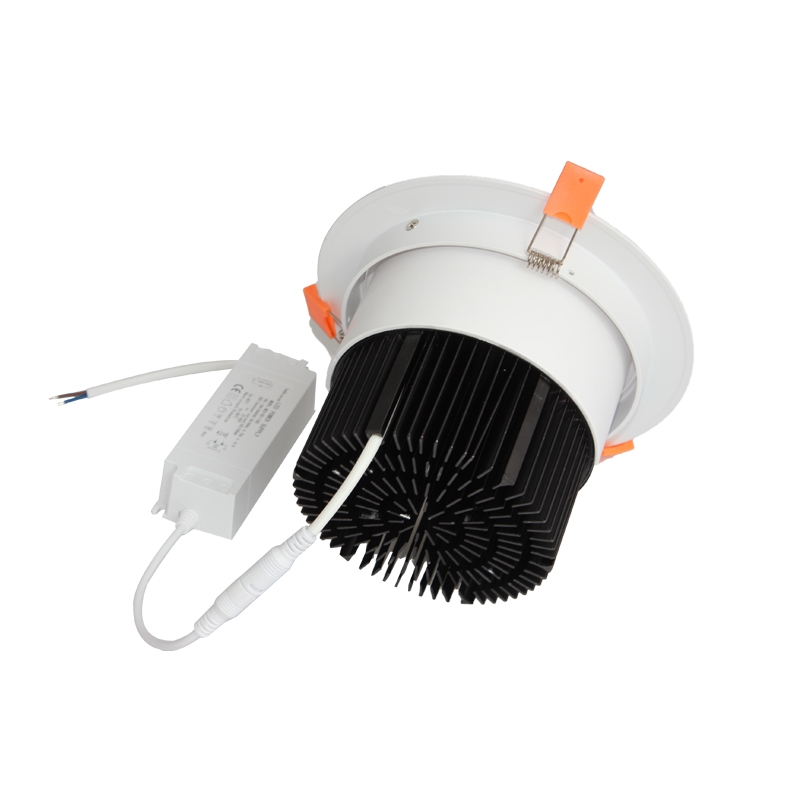

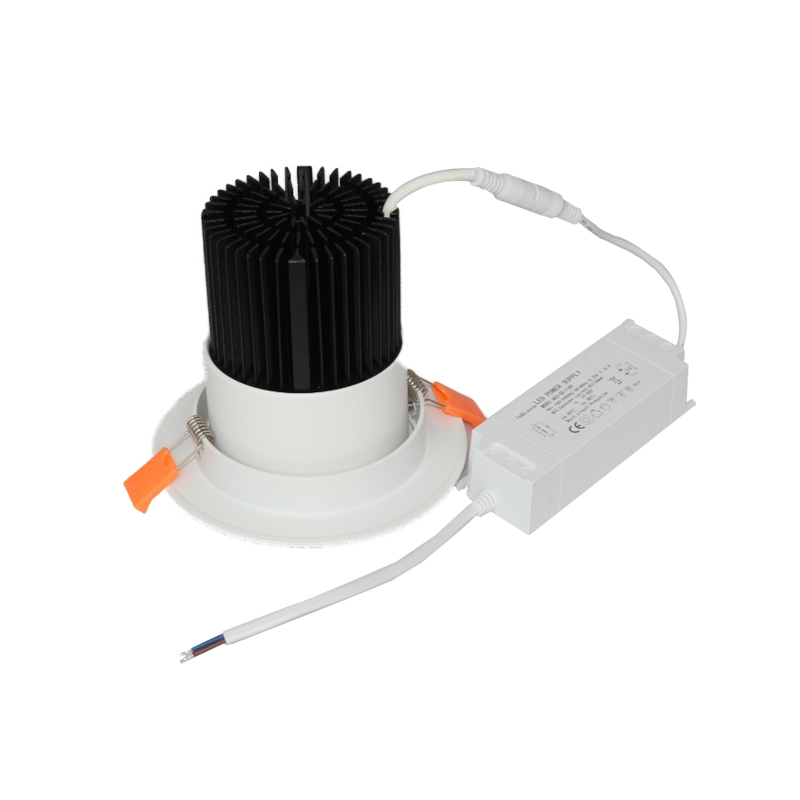

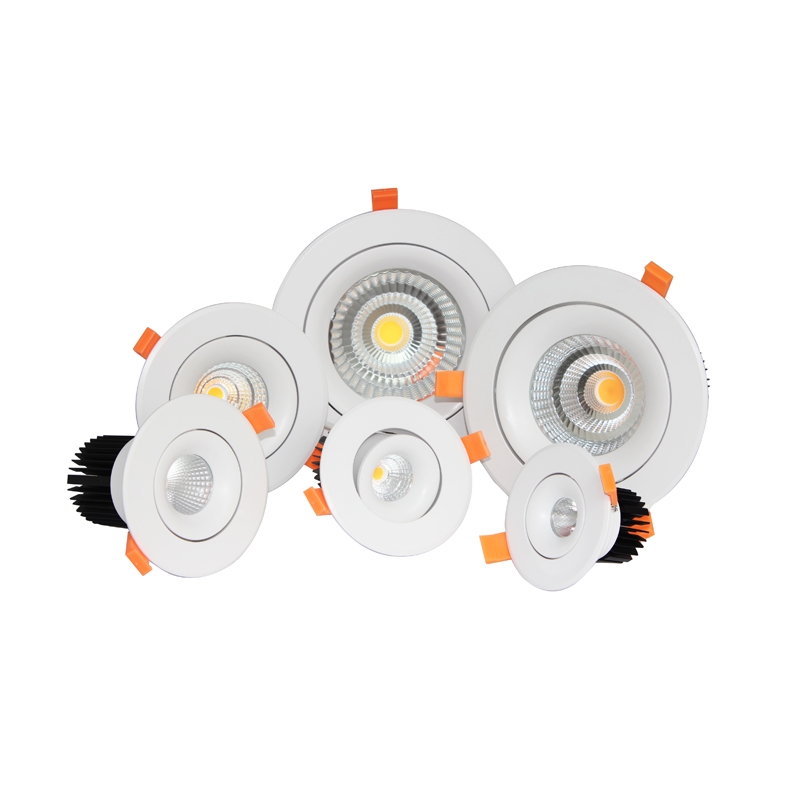

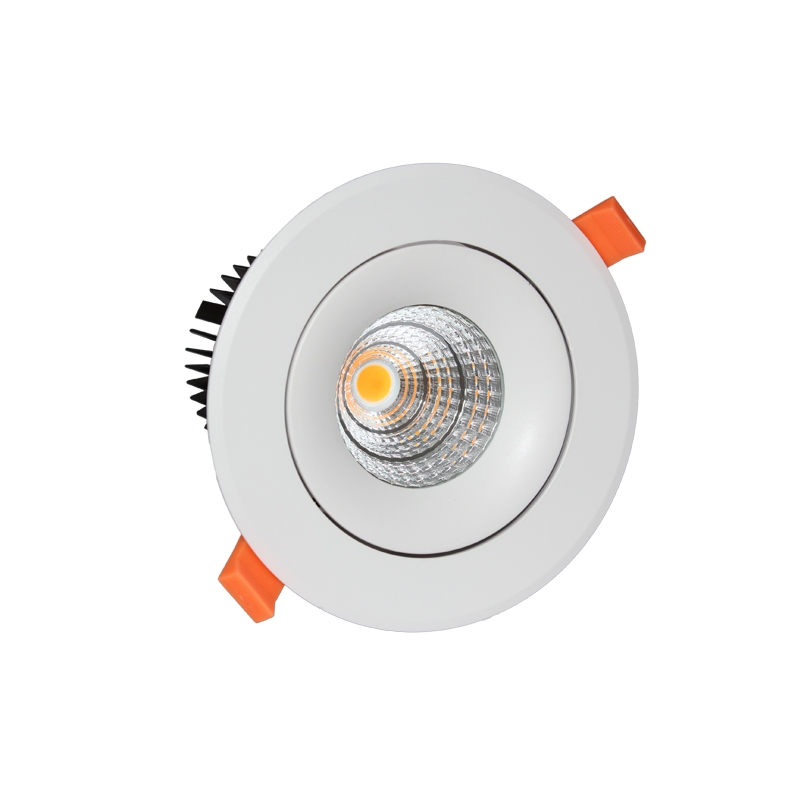

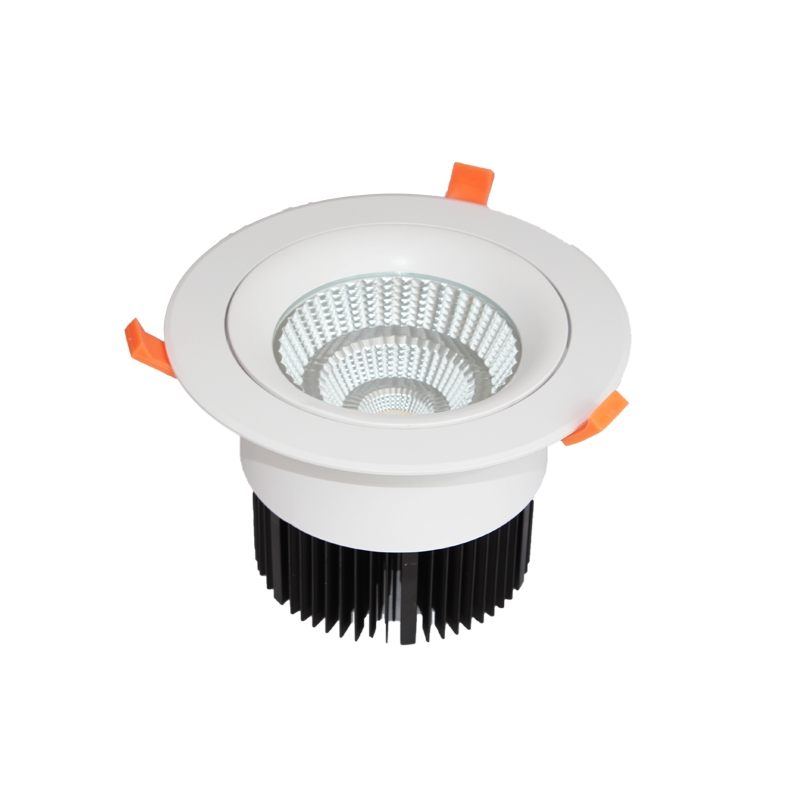

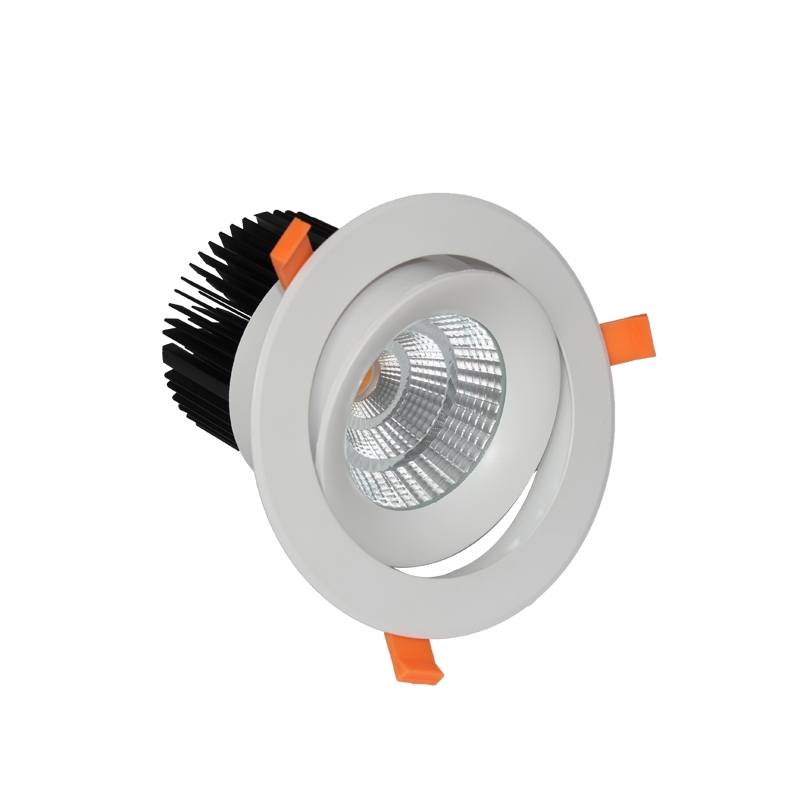

DLC series downlight is classic recessed downlight with 2-way rotation ±30 degree.. It has a wide range watts from 9W to 50W in different sizes , Cold forging heat sink provides excellent thermal dissipation makes it possible small size for high power wattage , OSRAM & Bridgelux LED allow to produce fixture of endogenous lighting performance and high efficiency natural looking light

Model No.	Input voltage(V)	Power (w)	LED Chip	Luminous flux (lm) (±5%)	Beam angle(o)	CCT (K)	CRI	Size (mm)	Cutout(mm)
OP-DLC09W C1	AC220-240V AC100-277V	9W	OSRAM Bridgelux	900LM	30	2700K 3000K 4000K 5000K	90+/95+	Φ95 H63 mm	ø70~75mm
OP-DLC12W C1	AC220-240V AC100-277V	12W	OSRAM Bridgelux	1200LM	24 36	2700K 3000K 4000K 5000K	90+/95+	Φ111 H86 mm	ø80~85mm
OP-DLC15W C1	AC220-240V AC100-277V	15W	OSRAM Bridgelux	1500LM	15 24 38 60	2700K 3000K 4000K 5000K	90+/95+	Φ119 H103 mm	ø90~95mm
OP-DLC20W C1	AC220-240V AC100-277V	20W	OSRAM Bridgelux	2000LM	24 36	2700K 3000K 4000K 5000K	90+/95+	Φ142 H122 mm	ø110~115mm
OP-DLC25W C1	AC220-240V AC100-277V	25W	OSRAM Bridgelux	2500LM	24 36	2700K 3000K 4000K 5000K	90+/95+	Φ142 H122 mm	ø110~115mm
OP-DLC30W C1	AC220-240V AC100-277V	30W	OSRAM Bridgelux	3000LM	24 38 60	2700K 3000K 4000K 5000K	90+/95+	Φ150 H130 mm	ø130~135mm
OP-DLC35W C1	AC220-240V AC100-277V	35W	OSRAM Bridgelux	3500LM	24 38 60	2700K 3000K 4000K 5000K	90+/95+	Φ180 H133 mm	ø145~155mm
OP-DLC40W C1	AC220-240V AC100-277V	40W	OSRAM Bridgelux	4000LM	24 38 60	2700K 3000K 4000K 5000K	90+/95+	Φ180 H145 mm	ø145~155mm
OP-DLC45W C1	AC220-240V AC100-277V	45W	OSRAM Bridgelux	4500LM	24 38 60	2700K 3000K 4000K 5000K	90+/95+	Φ193 H134 mm	ø158~165mm
OP-DLC50W C1	AC220-240V AC100-277V	50W	OSRAM Bridgelux	5000LM	24 38 60	2700K 3000K 4000K 5000K	90+/95+	Φ193 H134 mm	ø158~165mm
