Surface Mounted Downlight

Wattage :9W 15W 20W 25W 30W 35W 40W 45W

Driver : LIFUD PHILIPS

LED : OSRAM COB BRIDGELUX COB

Voltage :AC 220-240V AC100-277V

Lumen efficiency : 100LM/W

Color Temp. 2700K 3000K 3500K 4000K 5000K or Customized

CRI : >90Ra >97Ra

Housing material : Aluminum

Lamp Certificates: CE ROSH SAA

Warranty : 5 Years

Delivery time : 3-4 days for sampes ,7-15 days for bulky orders

Features:

Lighting Source: OSRAM Bridgelux

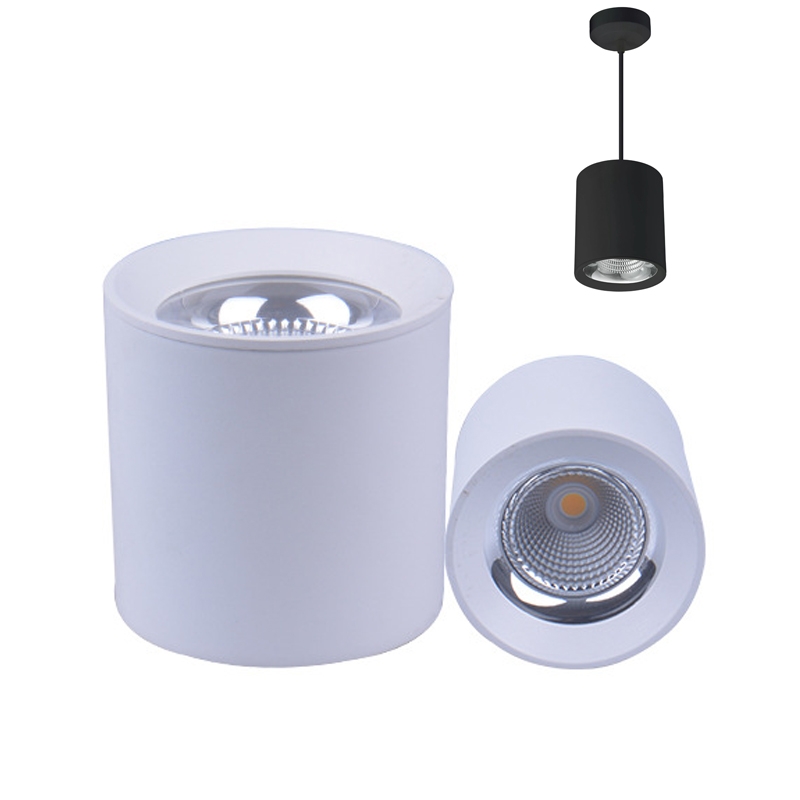

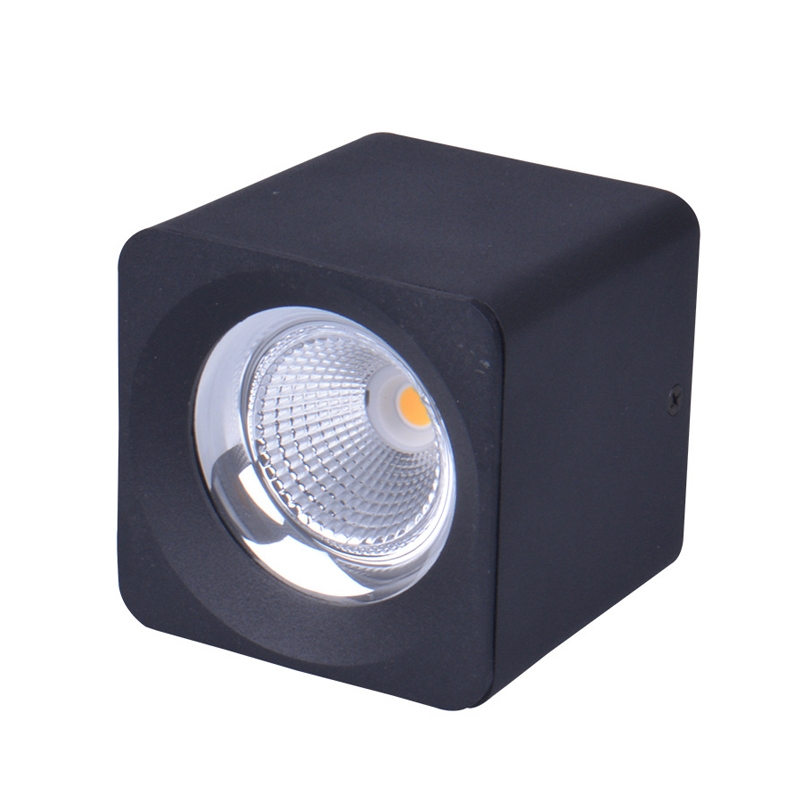

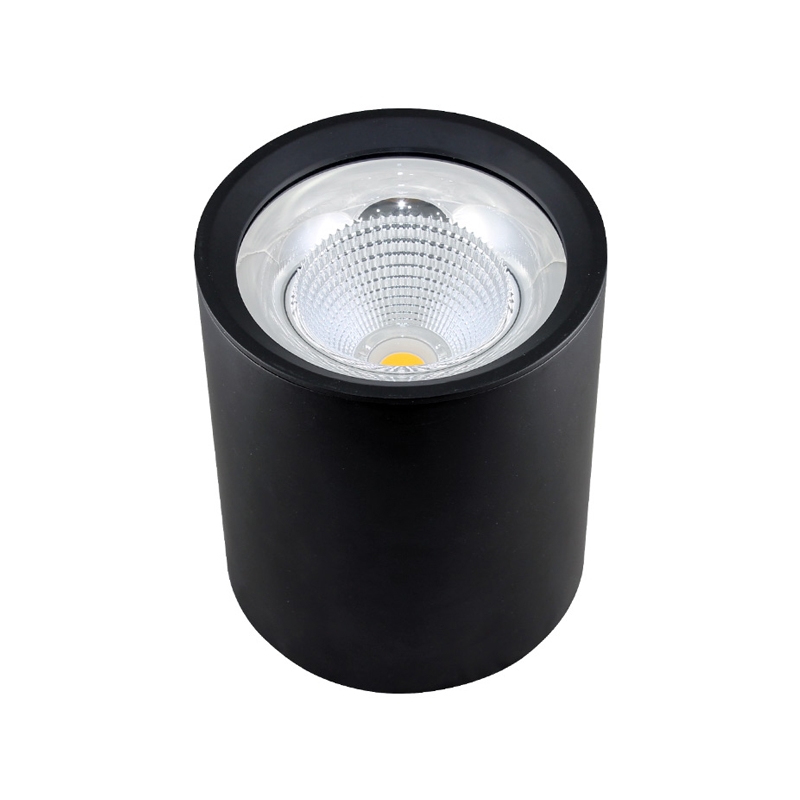

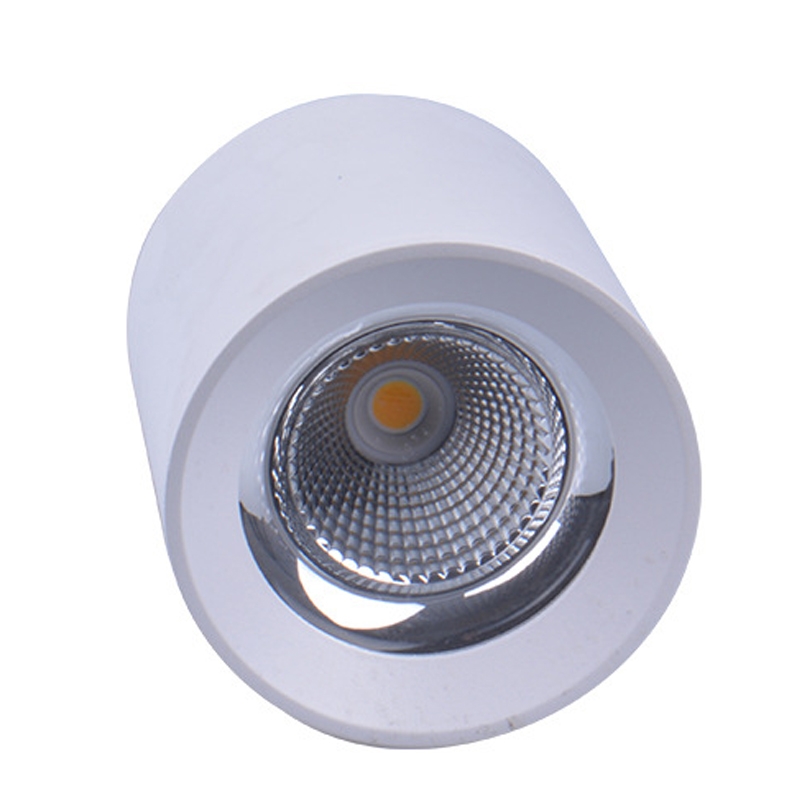

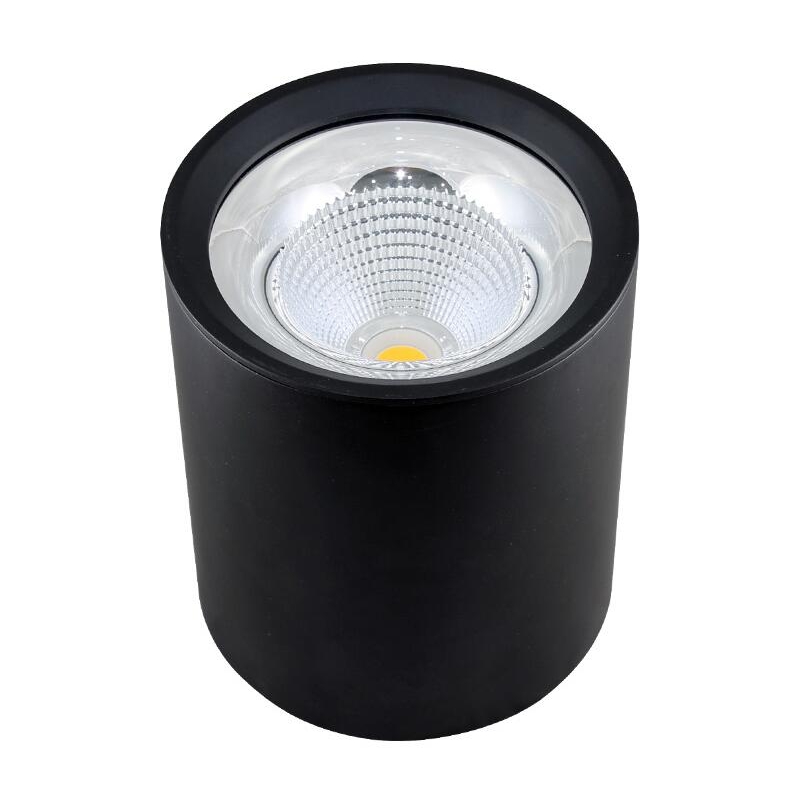

Cylinder and Square two designs

Available in 90+.

Dimming methods: ON/ OFF Triac Dimmable 0-10V DALI

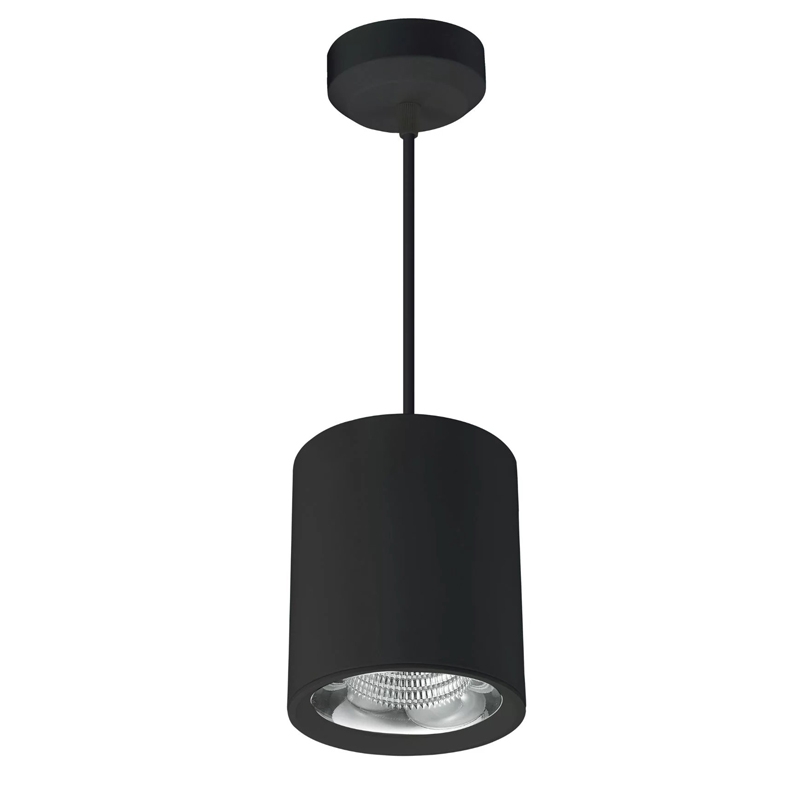

No need Cutout , surface mount install or hanging install.

Strongly light up an object from far or high distance.

Unique and compact design with perfect thermal management.

High quality LED, No UV or IR radiation

Model No.	Input voltage(V)	Power (w)	LED Chip	Luminous flux (lm) (±5%)	Beam angle(o)	CCT (K)	CRI	Size (mm)
OP-DLO9W O1	AC220-240V AC100-277V	9W	OSRAM Bridgelux	900LM	45	2700K 3000K 4000K 5000K	90+	Φ90 H90
OP-DLO15W O1	AC220-240V AC100-277V	15W	OSRAM Bridgelux	1500LM	45	2700K 3000K 4000K 5000K	90+	Φ110 H120
OP-DLO20W O1	AC220-240V AC100-277V	20W	OSRAM Bridgelux	2000LM	45	2700K 3000K 4000K 5000K	90+	Φ130 H152
OP-DLO25W O1	AC220-240V AC100-277V	25W	OSRAM Bridgelux	2500LM	45	2700K 3000K 4000K 5000K	90+	Φ130 H152
OP-DLO30W O1	AC220-240V AC100-277V	30W	OSRAM Bridgelux	3000LM	45	2700K 3000K 4000K 5000K	90+	Φ170 H185
OP-DLO35W O1	AC220-240V AC100-277V	35W	OSRAM Bridgelux	3500LM	45	2700K 3000K 4000K 5000K	90+	Φ170 H185
OP-DLO40W O1	AC220-240V AC100-277V	40W	OSRAM Bridgelux	4000LM	45	2700K 3000K 4000K 5000K	90+	Φ193 H190
OP-DLO45W O1	AC220-240V AC100-277V	45W	OSRAM Bridgelux	4500LM	45	2700K 3000K 4000K 5000K	90+	Φ193 H190

File Name :	Format:	Size:	Download:
Surface Mounted Downlight	PDF	536.31 KB
