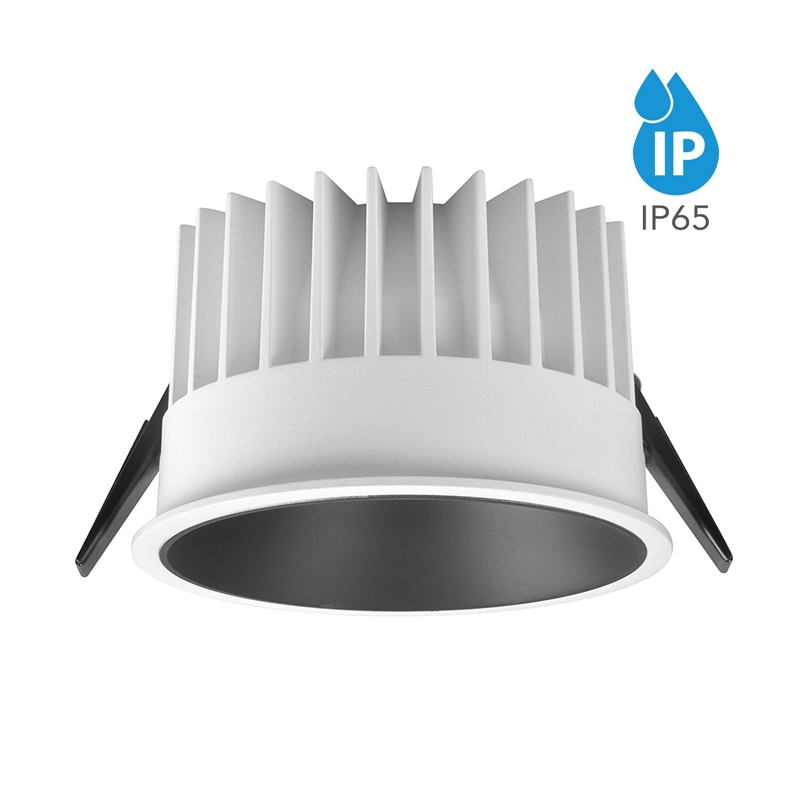

LED Downlight IP65 DLW W4

IP54 and IP65 solutions options

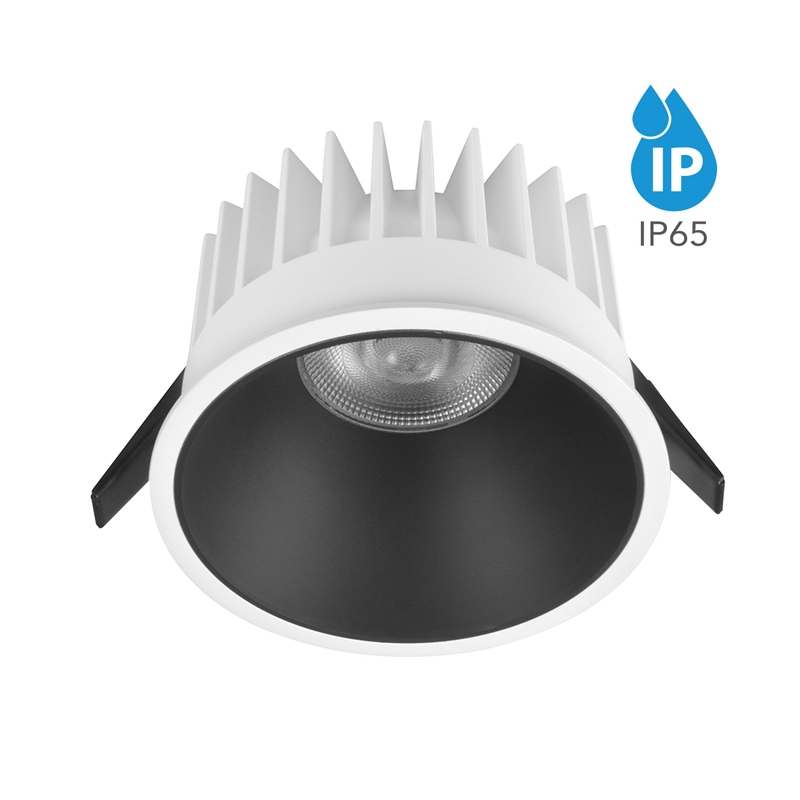

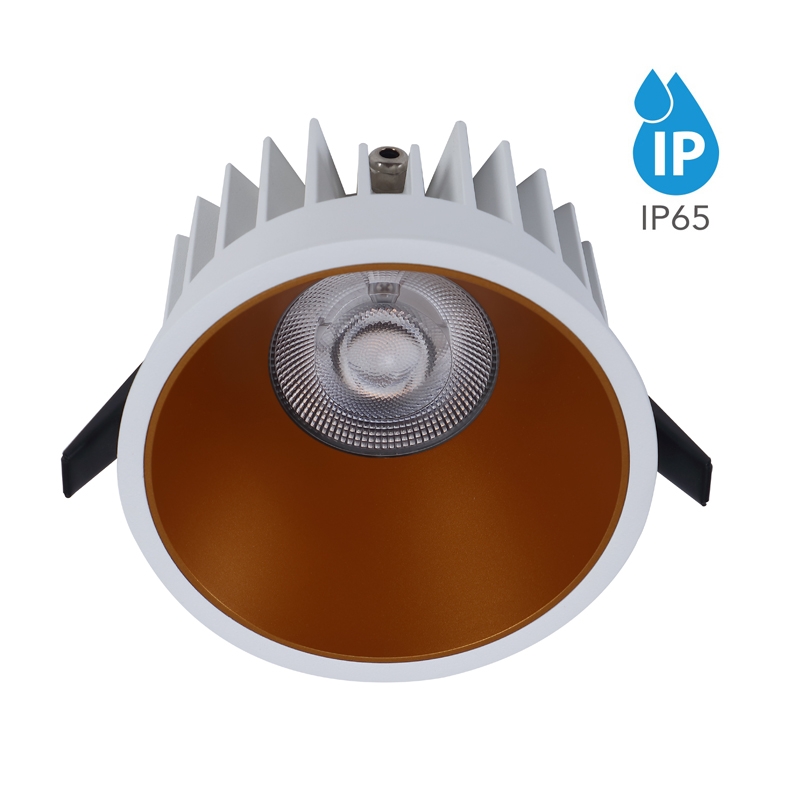

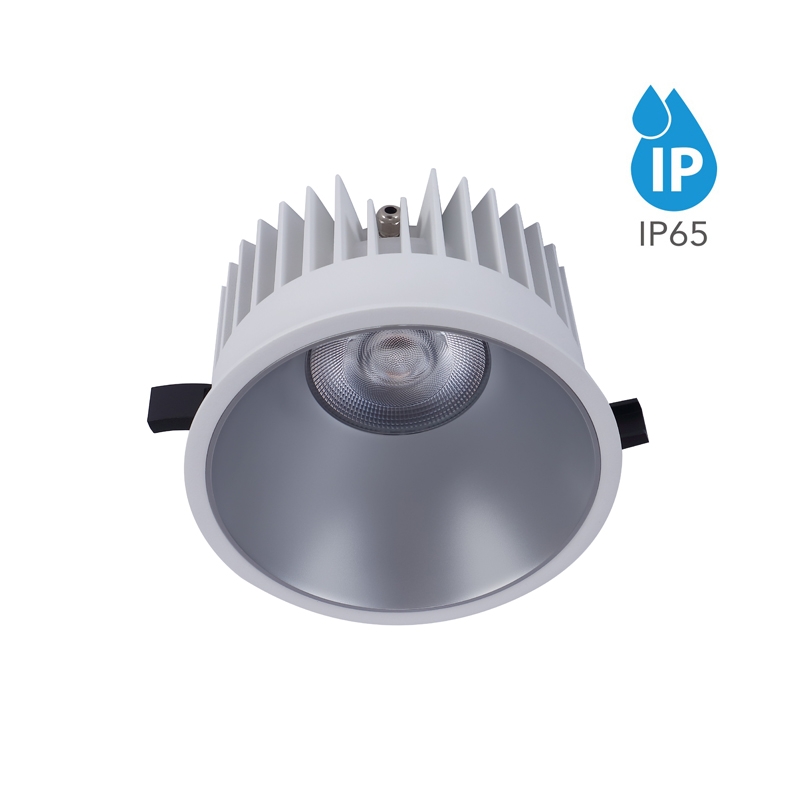

4 kinds of color reflectors for options

Die-casting ADC12 Aluminum, powder painting, acid and alkali resistance, oxidation resistance.

Voltage :AC 220-240V AC100-277V

Lumen efficiency : 100LM/W

Color Temp. 2700K 3000K 3500K 4000K 5000K or Customized

Dimmable : ON/OFF / Triac Dim/ 0-10V Dim/ DALI Dim

Housing color: Matt White, Matt Black,

Lamp Certificates: CE ROSH SAA

Warranty : 5 Years

Delivery time : 3-4 days for sampes ,7-15 days for bulky orders

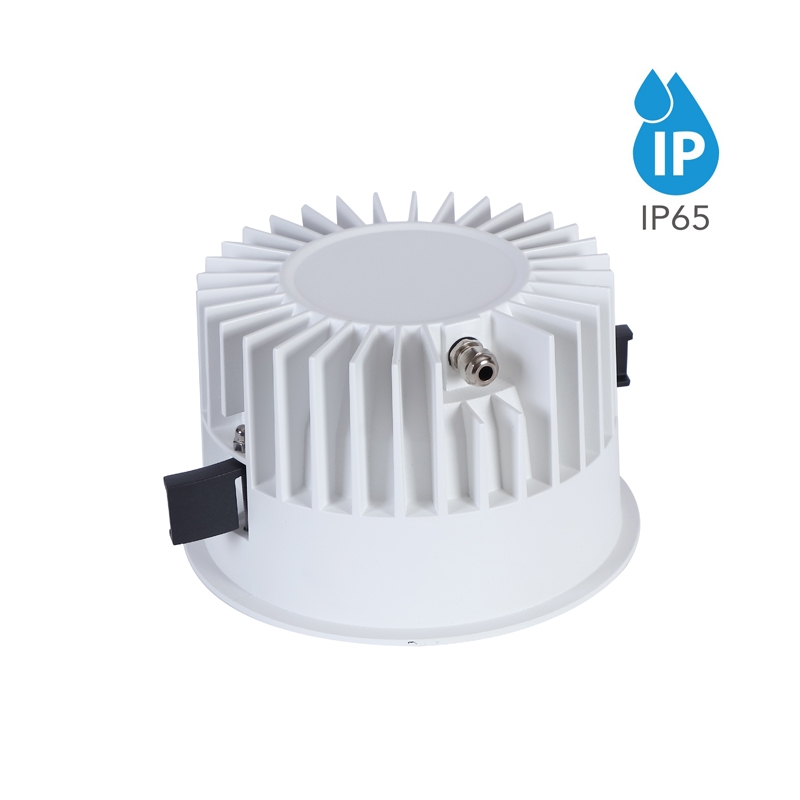

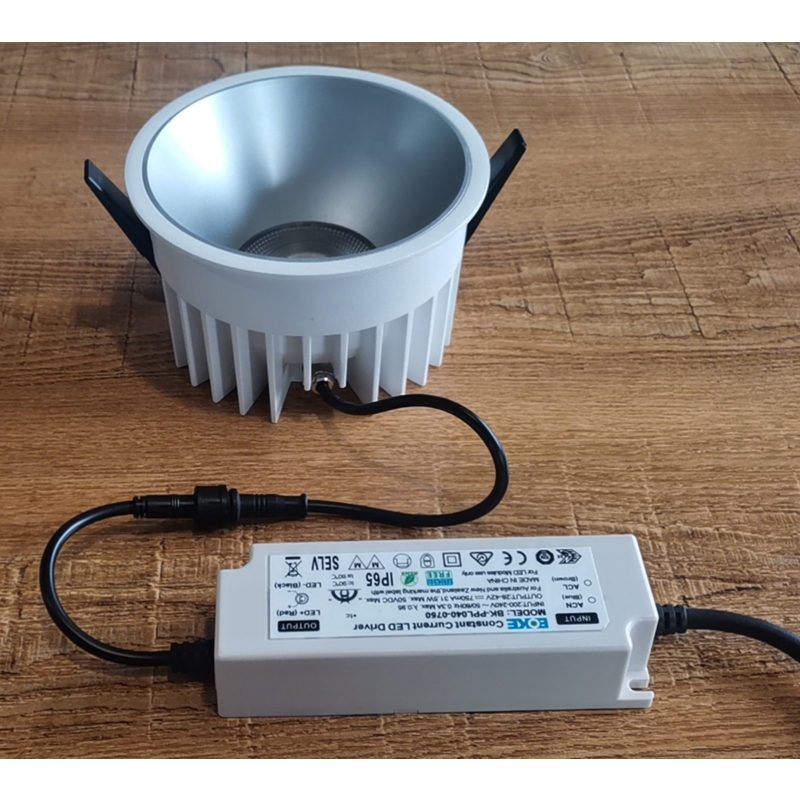

DLW Recessed IP65 Waterproof LED Downlight is required for zone regions near water sources. completed lamps IP65 waterproof protection with waterproof driver and waterproof connectors . it makes the room look better and they will have a higher resistance to steams.This downlights finish paint by Anti-Corrosive materials and fully water-resistant which means they are the perfect option for outdoor LED downlights ,round and square types for option

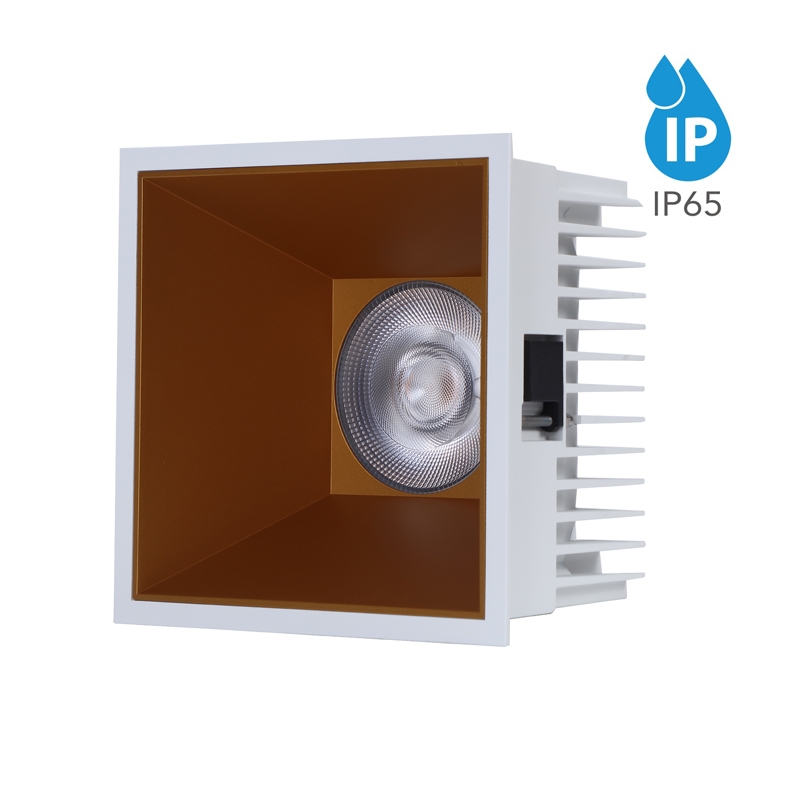

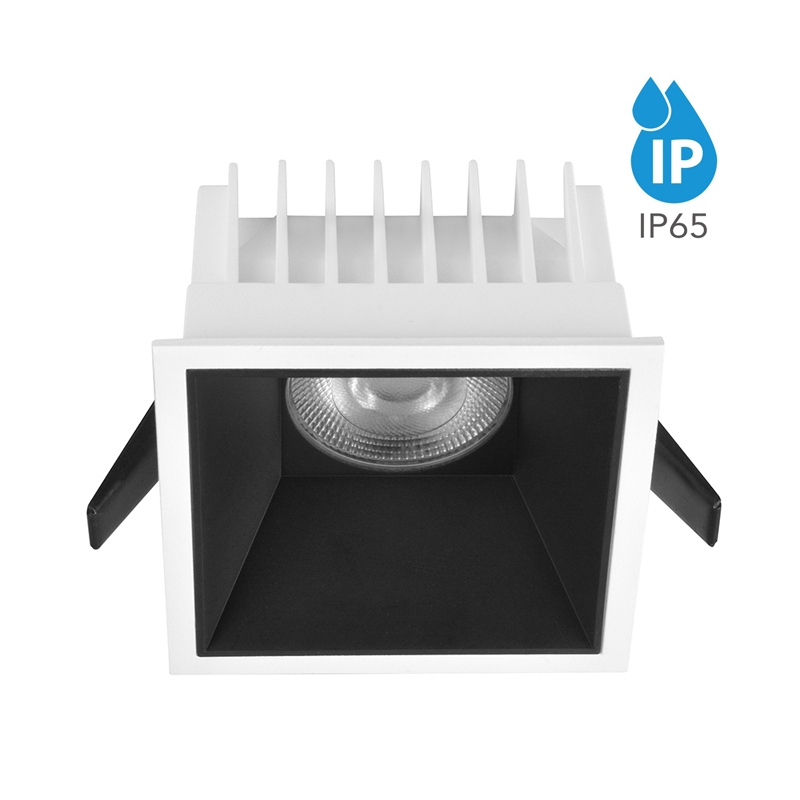

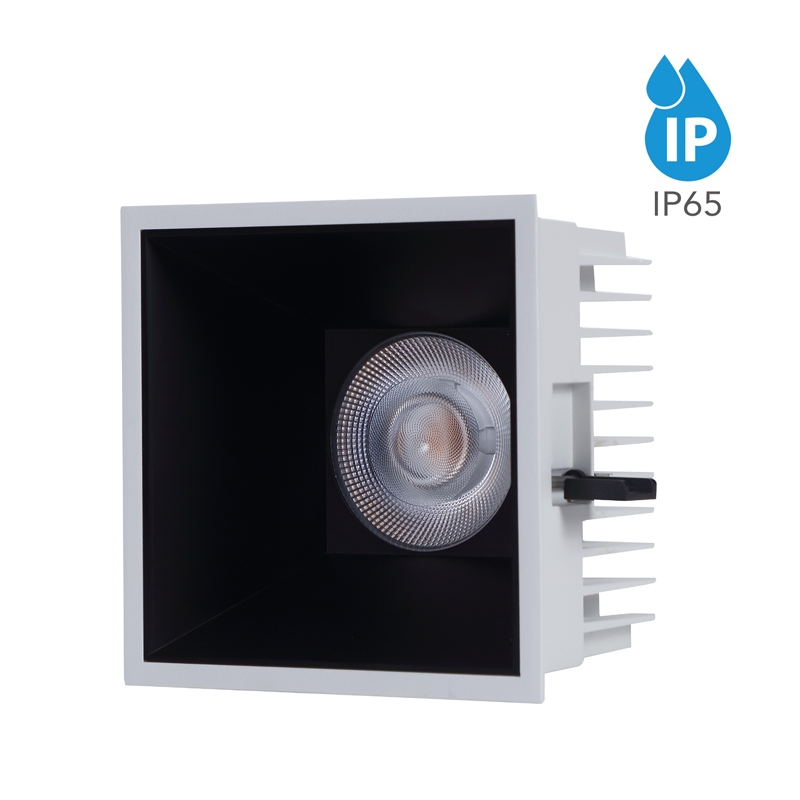

R= Round type S = Square type

Model No.	Input voltage(V)	Power (w)	LED Chip	Luminous flux (lm) (±5%)	Beam angle(o)	CCT (K)	CRI	Size (mm)	Cutout
OP-DLW15W W4 R	AC220-240V AC100-277V	15W	OSRAM Bridgelux	1500lm	15/24° 38/60°	2700K 3000K 4000K 5000K	90+	Φ100*H64mm	ø90mm
OP-DLW25W W4 R	AC220-240V AC100-277V	25W	OSRAM Bridgelux	2500lm	15/24° 38/60°	2700K 3000K 4000K 5000K	90+	Φ136*H83mm	ø125mm
OP-DLW35W W4 R	AC220-240V AC100-277V	35W	OSRAM Bridgelux	3500lm	15/24° 38/60°	2700K 3000K 4000K 5000K	90+	Φ159*H96mm	ø145mm
OP-DLW45W W4 R	AC220-240V AC100-277V	45W	OSRAM Bridgelux	4500lm	15/24° 38/60°	2700K 3000K 4000K 5000K	90+	Φ180*H109mm	ø165mm
OP-DLW15W W4 S	AC220-240V AC100-277V	15W	OSRAM Bridgelux	1500lm	15/24° 38/60°	2700K 3000K 4000K 5000K	90+	W100L100 H64mm	W90* L90mm
OP-DLW25W W4 S	AC220-240V AC100-277V	25W	OSRAM Bridgelux	2500lm	15/24° 38/60°	2700K 3000K 4000K 5000K	90+	W136L136mm H83mm	W125* L125mm
OP-DLW35W W4 S	AC220-240V AC100-277V	35W	OSRAM Bridgelux	3500lm	15/24° 38/60°	2700K 3000K 4000K 5000K	90+	W158L128mm H96mm	W145* L145mm
OP-DLW45W W4 S	AC220-240V AC100-277V	45W	OSRAM Bridgelux	4500lm	15/24° 38/60°	2700K 3000K 4000K 5000K	90+	W180L180mm H109mm	W165* L165mm
