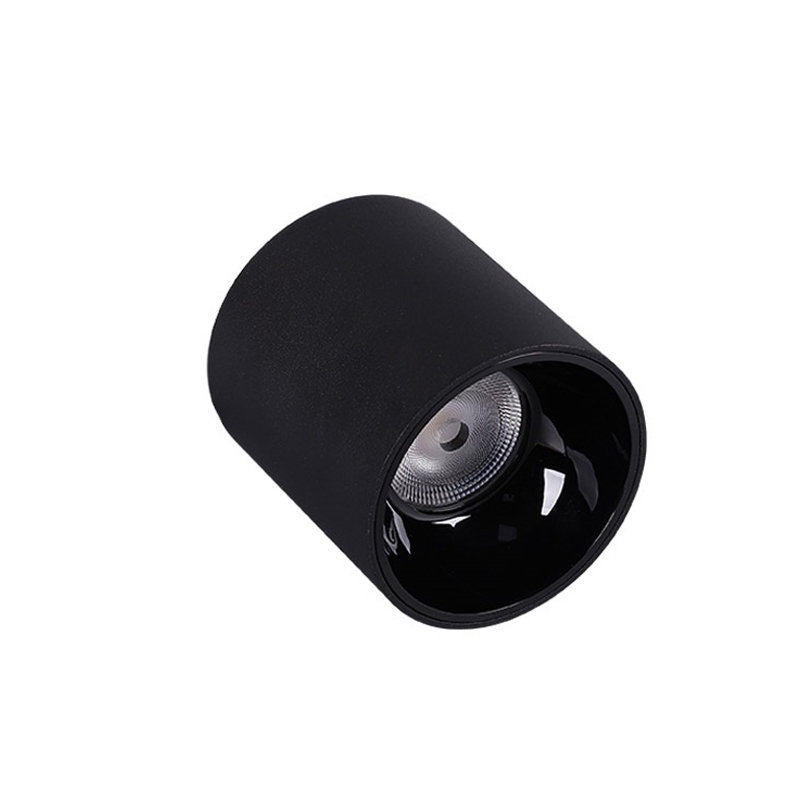

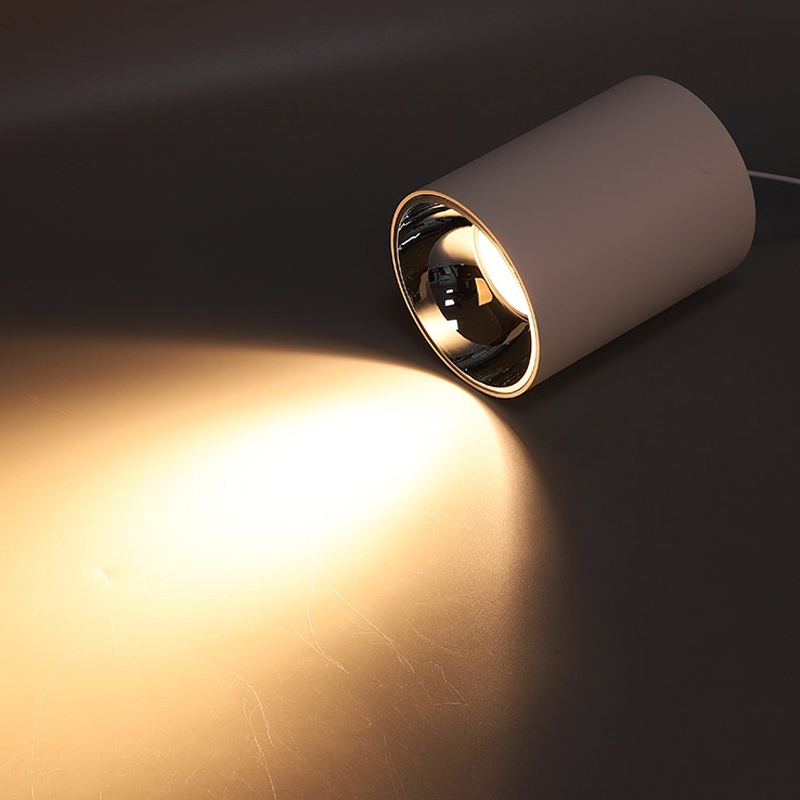

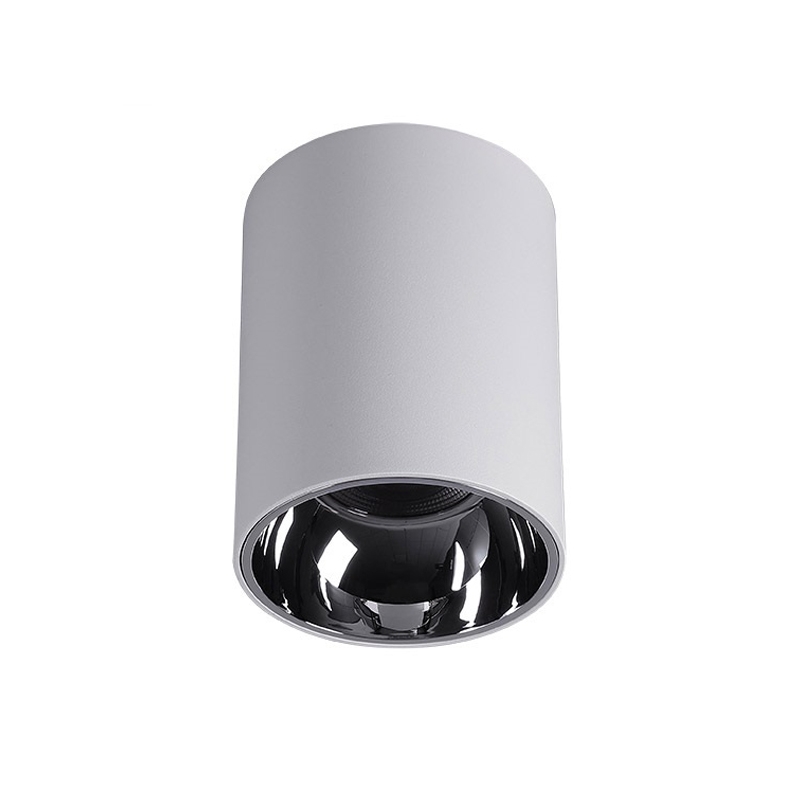

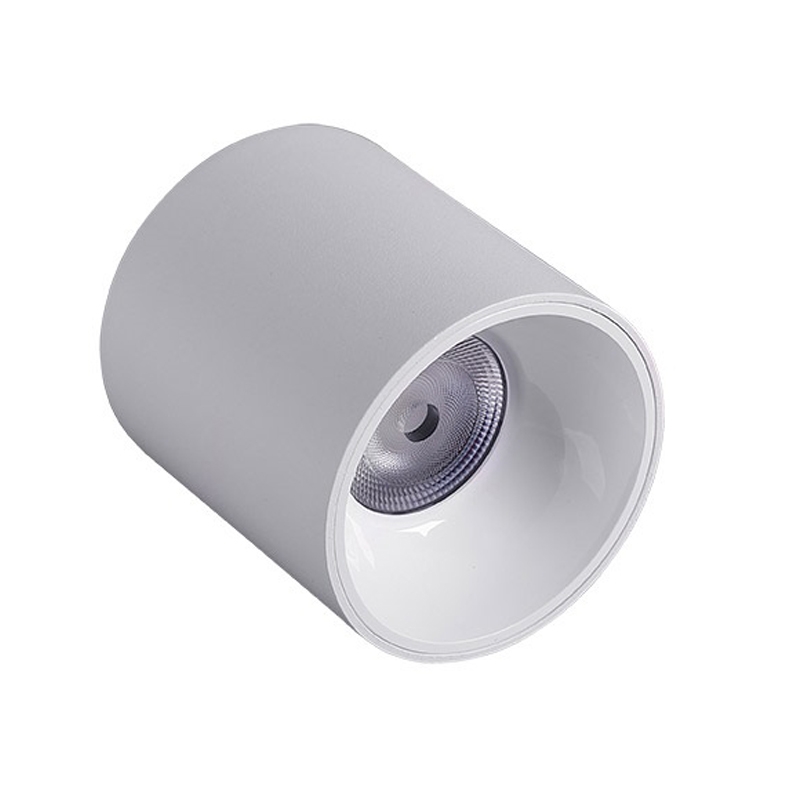

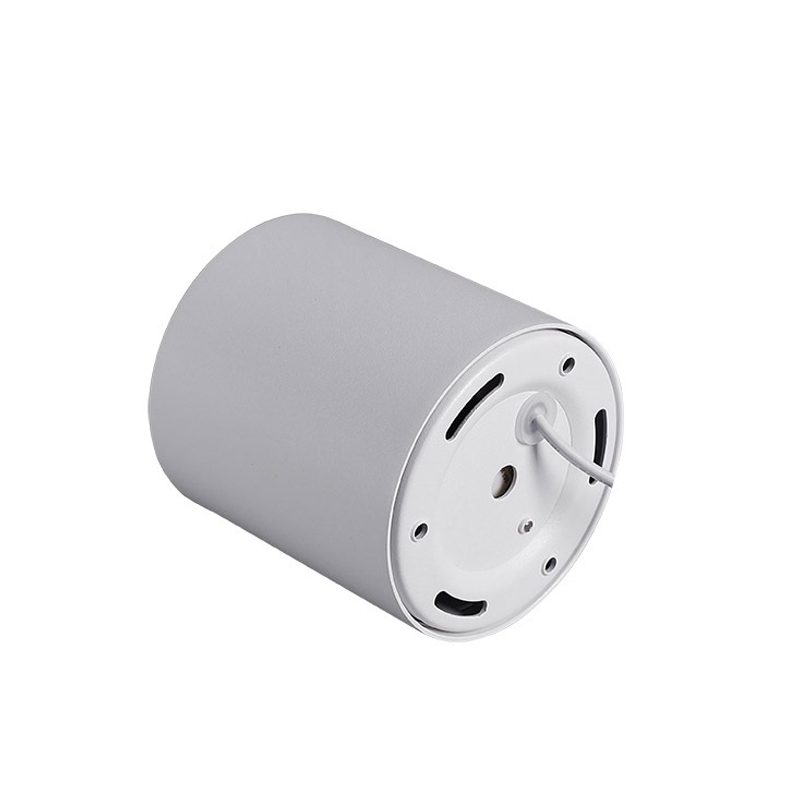

Surface Mounted Downlight Waterproof

1 Wattage : 10W 15W 20W 30W 40W 50W 60W 70W
2 Driver : Waterproof Driver
3 LED : OSRAM COB  BRIDGELUX COB
4 Voltage :AC 220-240V  AC100-277V
5 Color Temp. 2700K 3000K 3500K 4000K 5000K or Customized
6 CRI : >90Ra
7  Housing material :  Aluminum
8 Lamp Certificates: CE ROSH SAA
9 Warranty : 5 Years
10 Delivery time : 3-4 days for sampes ,7-15 days for bulky orders
    Features:

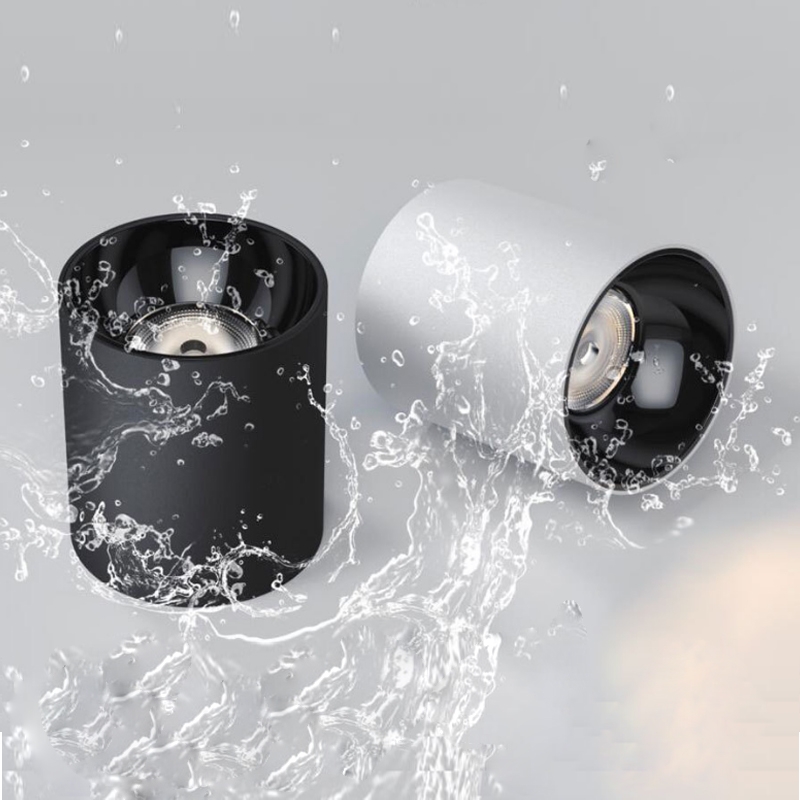

    1 Completely sealed against the ingress of foreign bodies and water and even against high pressure and steam jet cleaning
    2 Perfect at anti-glare with a glaring cut angle >40;
    3 Beam angle: 20° 40° ;
    4 Optional color of the anti-glare cup;
    5 Surface-mounted, wall-mounted and Suspended mounted option;
    6 Deeply LED Inside with Anti-glare rings  UGR<13
    7 5 colors of reflectors  optional for different application
    8 Medium useful life > 50,000 hours (L80B50) at ambient temperature of 25 ºC

    Model No.

    Input voltage(V)

    Power (w)

    LED Chip

    Luminous flux (lm)  (±5%)

    Beam angle(o)

    CCT (K)

    CRI

    Size (mm)

    OP-DLO10W IP65

    AC220-240V
    AC100-277V

    10W

    OSRAM Bridgelux

    1000LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ75 H100mm

    OP-DLO15W IP65

    AC220-240V
     AC100-277V

    15W

    OSRAM Bridgelux

    1500LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ75 H152mm

    OP-DLO20W IP65

    AC220-240V
     AC100-277V

    20W

    OSRAM Bridgelux

    2000LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ95H152mm

    OP-DLO30WA IP65

    AC220-240V
     AC100-277V

    30W

    OSRAM Bridgelux

    3000LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ115 H152mm

    OP-DLO30WB IP65

    AC220-240V
     AC100-277V

    30W

    OSRAM Bridgelux

    3000LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ140 H162mm

    OP-DLO40W IP65

    AC220-240V
     AC100-277V

    40W

    OSRAM Bridgelux

    4000LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ140 H162mm

    OP-DLO50W IP65

    AC220-240V
     AC100-277V

    50W

    OSRAM Bridgelux

    5000LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ170 H182mm

    OP-DLO60W IP65

    AC220-240V
    AC100-277V

    60W

    OSRAM Bridgelux

    6000LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ205 H212mm

    OP-DLO70W IP65

    AC220-240V
    AC100-277V

    70W

    OSRAM Bridgelux

    7000LM

    20/40

    2700K 3000K 4000K 5000K

    90+

    Φ205 H212mm
