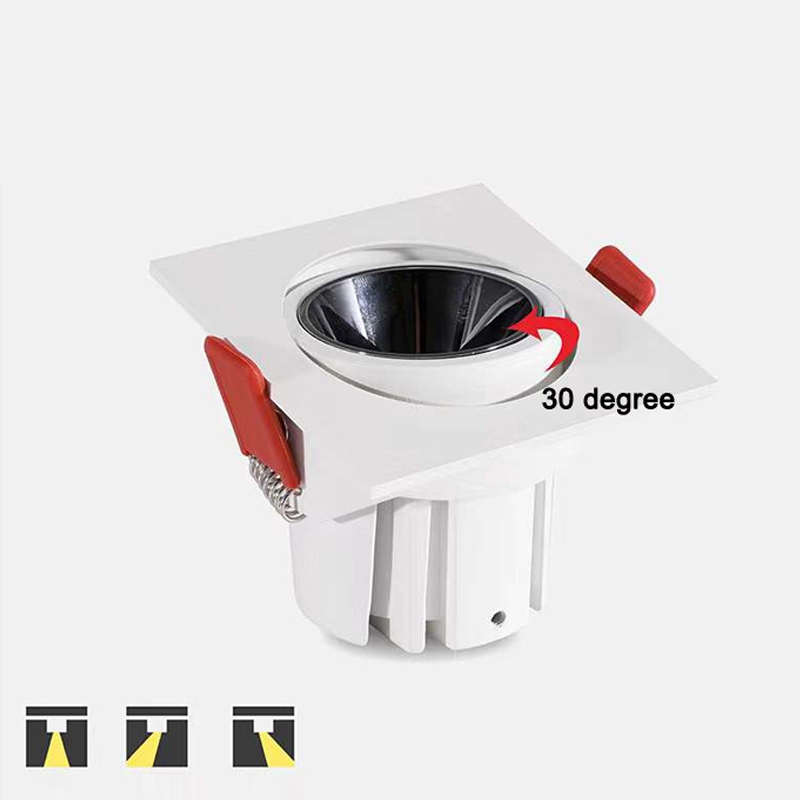

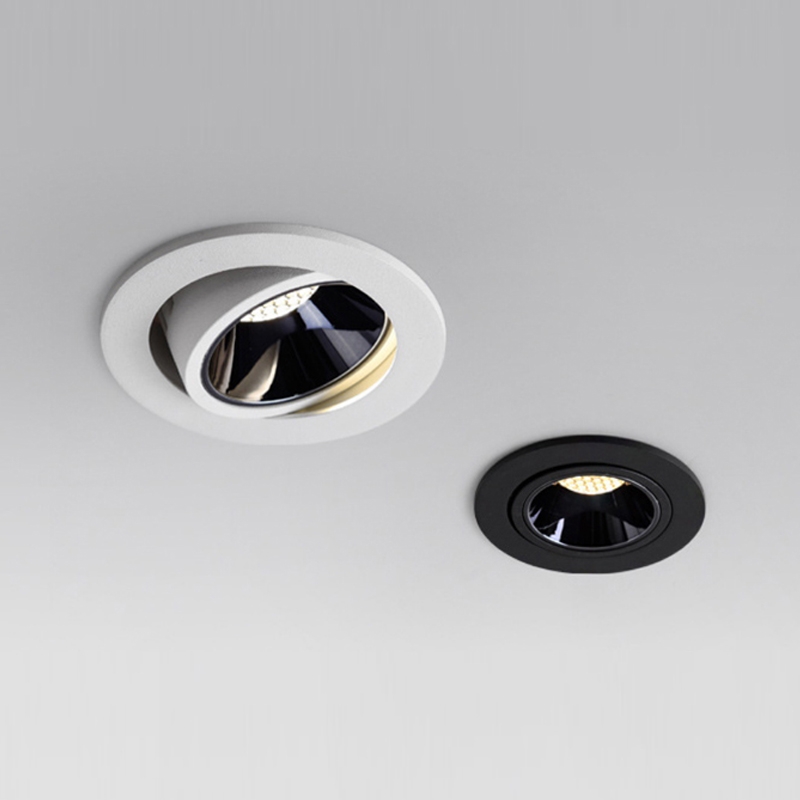

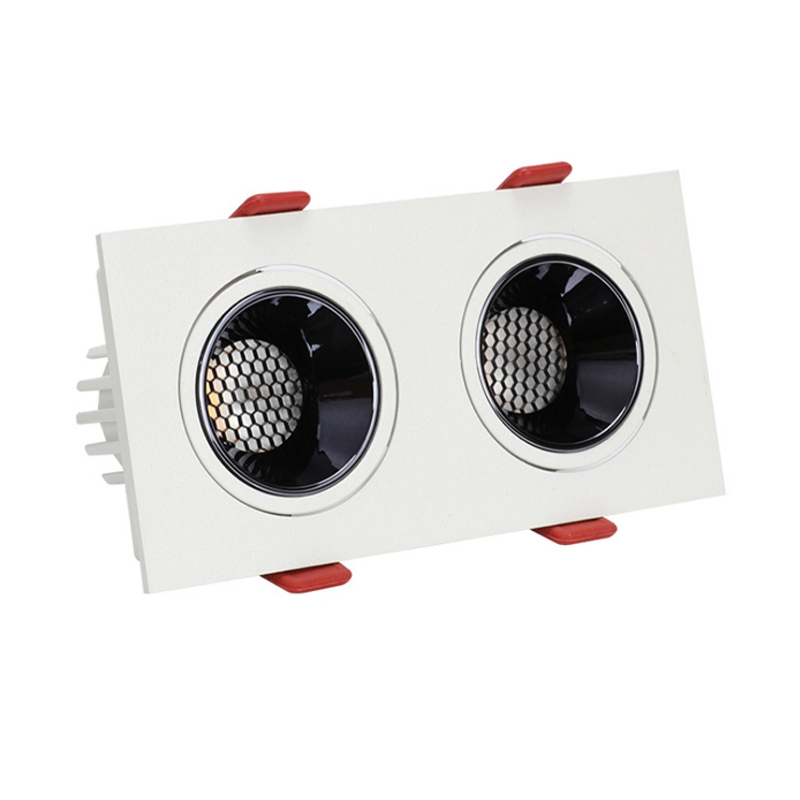

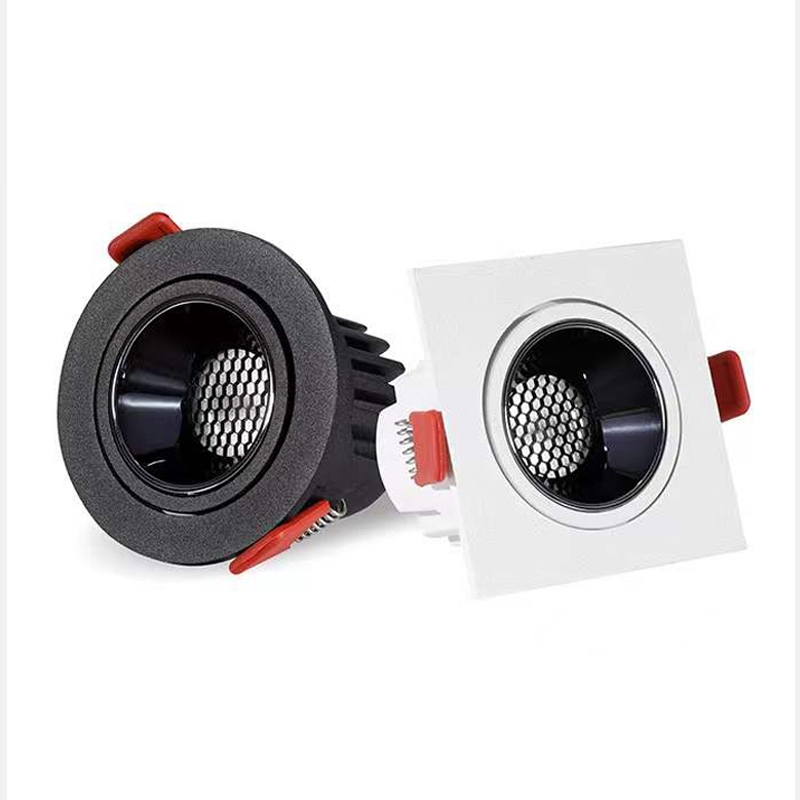

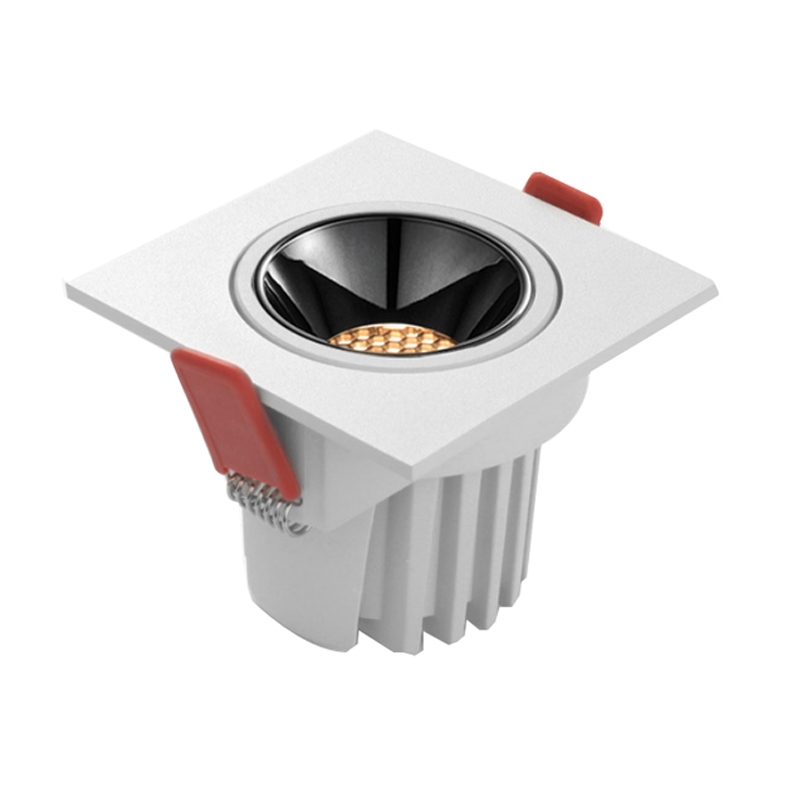

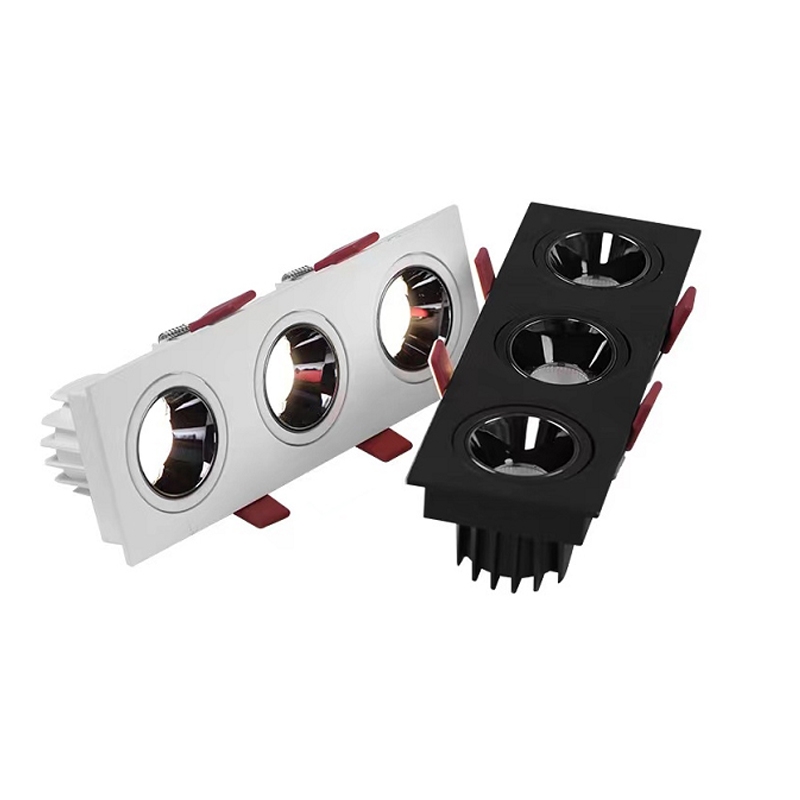

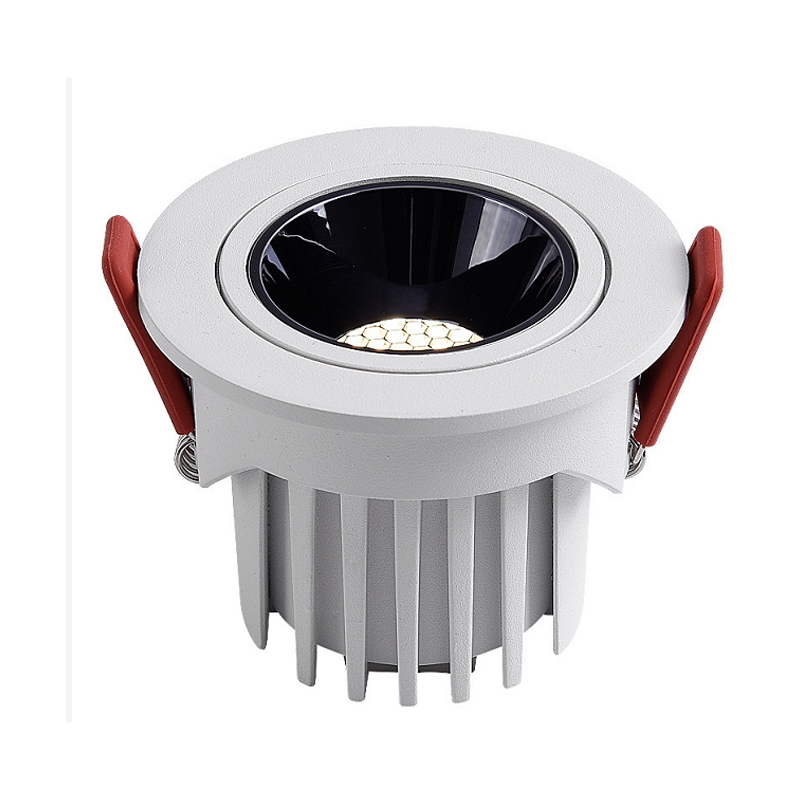

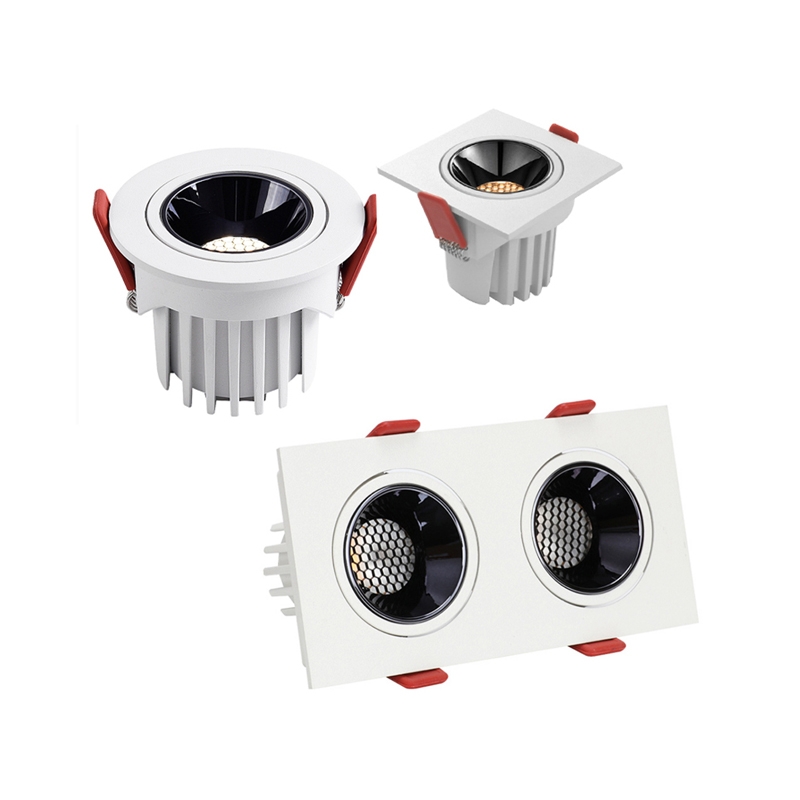

DLH H2 downlights range with shielded light source and precise cut off baffle reduces glare and improves visual comfort. ,Baffle available in Black or White. Honeycomb and prismatic diffusers optional.Round/Square/Twins /Triples heads options , Available in matt white and black finish
|
Model No. |
Input voltage(V) |
Power (w) |
LED Chip |
Luminous flux (lm) (±5%) |
Beam angle(o) |
CCT (K) |
CRI |
Size (mm) |
Cutout(mm) |
|
OP-DLH09W H2 |
AC220-240V |
9W |
OSRAM Bridgelux |
100LM/W |
15 24 36 |
2700K 3000K 4000K 5000K |
90+ |
φ85*H66mm |
ø75mm |
|
OP-DLH15W H2 |
AC220-240V |
15W |
OSRAM Bridgelux |
100LM/W |
15 24 36 |
2700K 3000K 4000K 5000K |
90+ |
φ106*H77mm |
ø95mm |
|
OP-DLH09WS H2 |
AC220-240V |
9W |
OSRAM Bridgelux |
100LM/W |
15 24 36 |
2700K 3000K 4000K 5000K |
90+ |
L85*W85*H66mm |
L75*W75mm |
|
OP-DLH15WS H2 |
AC220-240V |
15W |
OSRAM Bridgelux |
100LM/W |
15 24 36 |
2700K 3000K 4000K 5000K |
90+ |
L106*W106*H77mm |
L95*W95mm |
|
OP-DLH2*9W H2 |
AC220-240V |
2*9W |
OSRAM Bridgelux |
100LM/W |
15 24 36 |
2700K 3000K 4000K 5000K |
90+ |
L168*W85*H66mm |
L155*W75mm |
|
OP-DLH2*15W H2 |
AC220-240V |
2*15W |
OSRAM Bridgelux |
100LM/W |
15 24 36 |
2700K 3000K 4000K 5000K |
90+ |
L210*W106*H77mm |
L198*W95mm |
|
OP-DLH3*9W H2 |
AC220-240V |
3*9W |
OSRAM Bridgelux |
100LM/W |
15 24 36 |
2700K 3000K 4000K 5000K |
90+ |
L247*W85*H66mm |
L240*W75mm |
