P2 SMD Downlight

Wattage : 6W 12W 20W 25W
Driver : Lifud Philips
LED : OSRAM
Voltage :AC 220-240V  AC100-277V
Lumen efficiency : 100LM/W
Color Temp. 2700K 3000K 3500K 4000K 5000K or Customized
CRI : >80Ra  >90Ra
Housing material :  Die-cast Aluminum
Dimmable : ON/OFF / Triac Dim/ 0-10V Dim/ DALI Dim
Housing color: Matt White, Matt Black,
Lamp Certificates: CE ROSH SAA
Warranty : 5 Years
Delivery time : 3-4 days for sampes ,7-15 days for bulky orders

    Features:

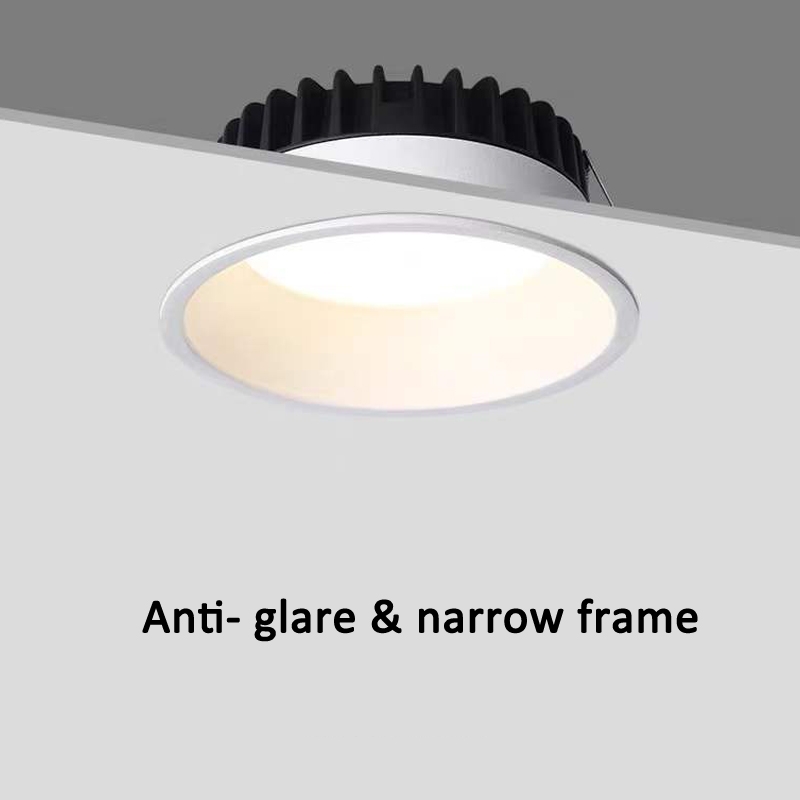

    l Opal diffuser glare free design ,Spread a very homogenous light
    2 Direct replacement for compact fluorescent lamp downlights
    3 Energy savings of up to 60 % compared to luminaires that use CFL
    4 Adopt aluminum alloy as material die-casting process , high-end and gorgeous
    5 Low UGR < 19
    6 High transmission PMMA Cover
    7 Medium useful life > 50,000 hours (L80B50) at ambient temperature of 25 ºC
    8 Working environment temperature: -20oc ~ +45oc.
    9 Dimming options : Triac  0/ 1-10V
    10 IP44



    Model Number

    Input voltage(V)

    Power (w)

    LED Chip

    Luminous flux (lm)  (±5%)

    Beam angle(o)

    CCT (K)

    CRI

    Size (mm)

    Cutout(mm)

    OP-TLP6W P2

    AC220V-240V

    6W

    OSRAM

    600LM

    90

    2700K 3000K 4000K 5000K 6000K

    80+

    ɸ90 H47   mm

    ø80mm

    OP-TLP12W P2

    AC220V-240V

    12W

    OSRAM

    1200LM

    90

    2700K 3000K 4000K 5000K 6000K

    80+

    ɸ119 H50 mm

    ø110mm

    OP-TLP20W P2

    AC220V-240V

    20W

    OSRAM

    2000LM

    90

    2700K 3000K 4000K 5000K 6000K

    80+

    ɸ175 H56 mm

    ø165mm

    OP-TLP25W P2

    AC220V-240V

    25W

    OSRAM

    2500LM

    90

    2700K 3000K 4000K 5000K 6000K

    80+

    ɸ175 H56 mm

    ø165mm
