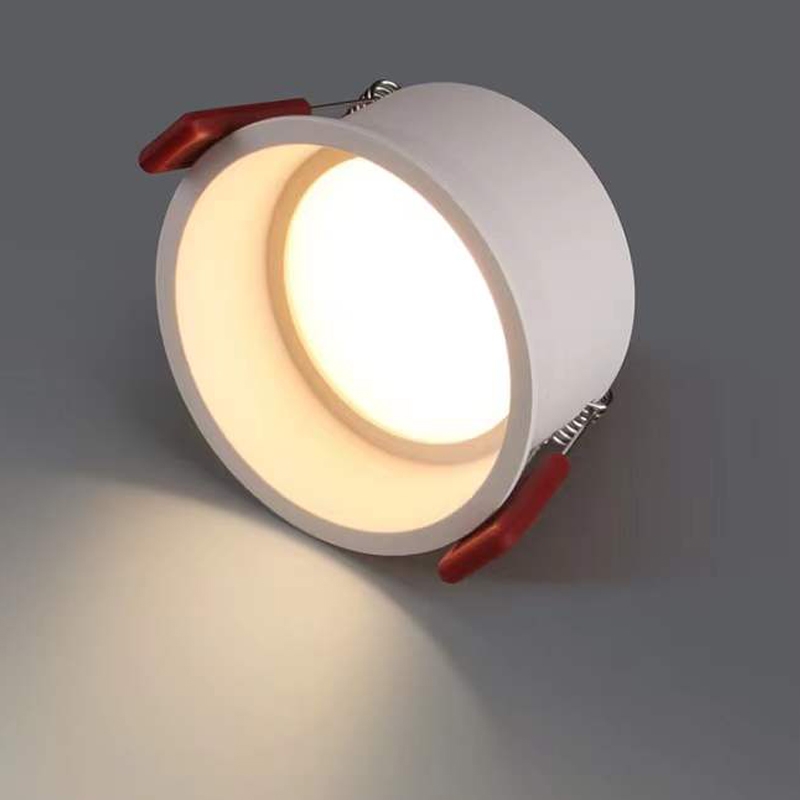

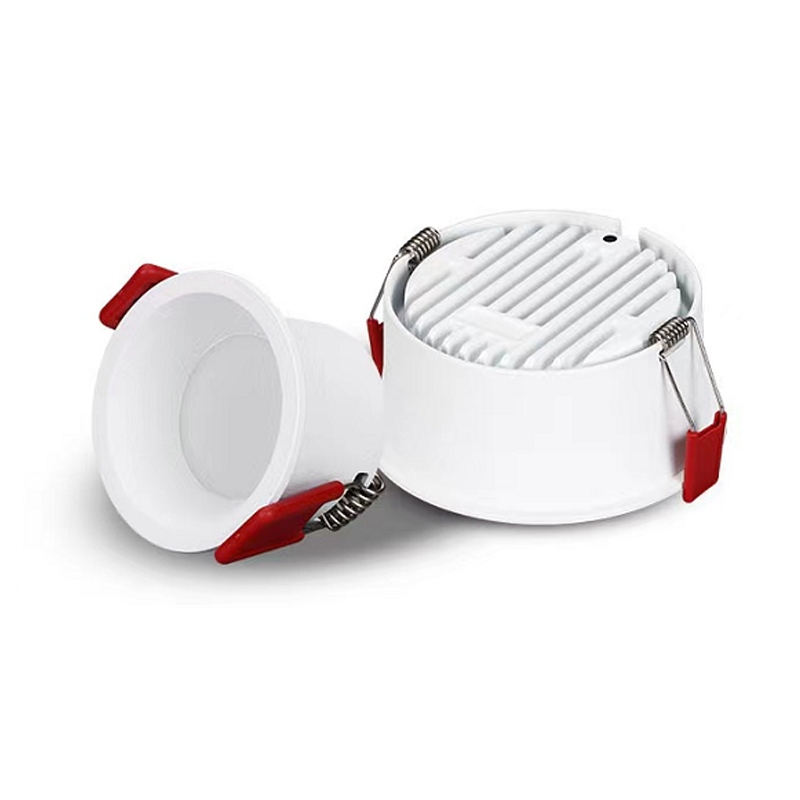

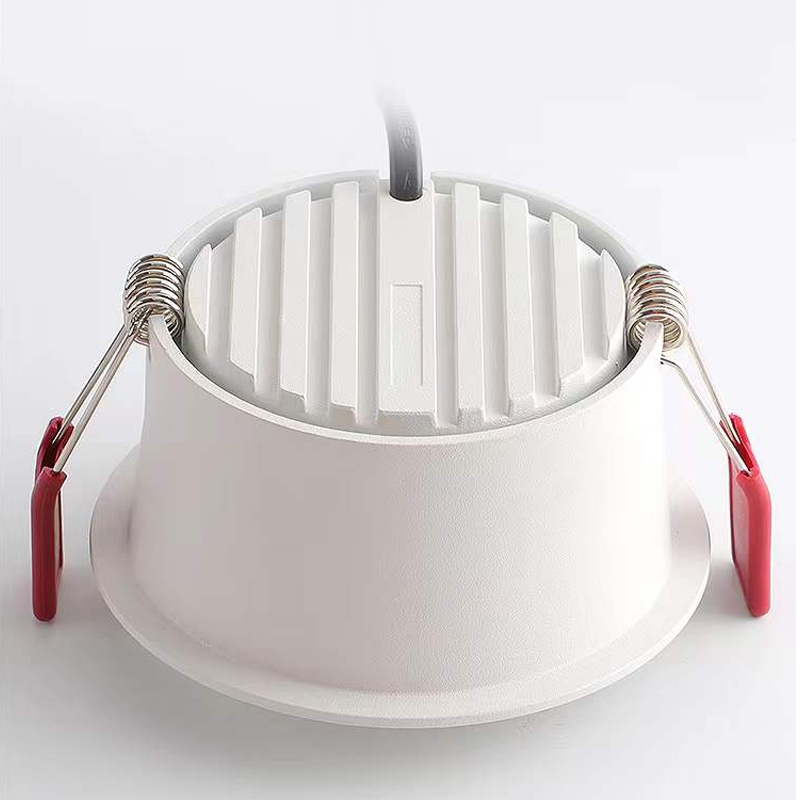

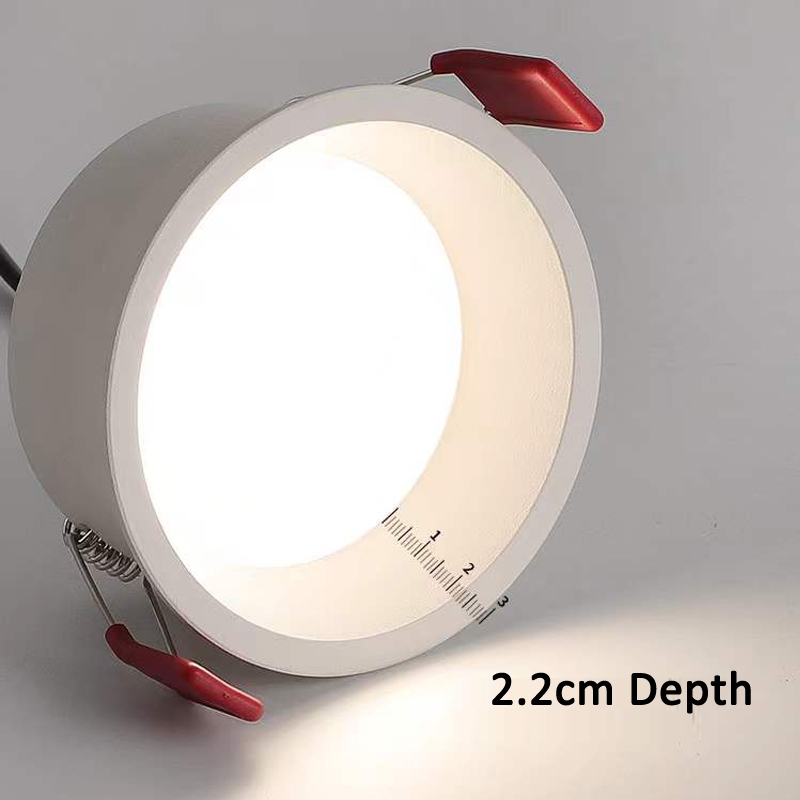

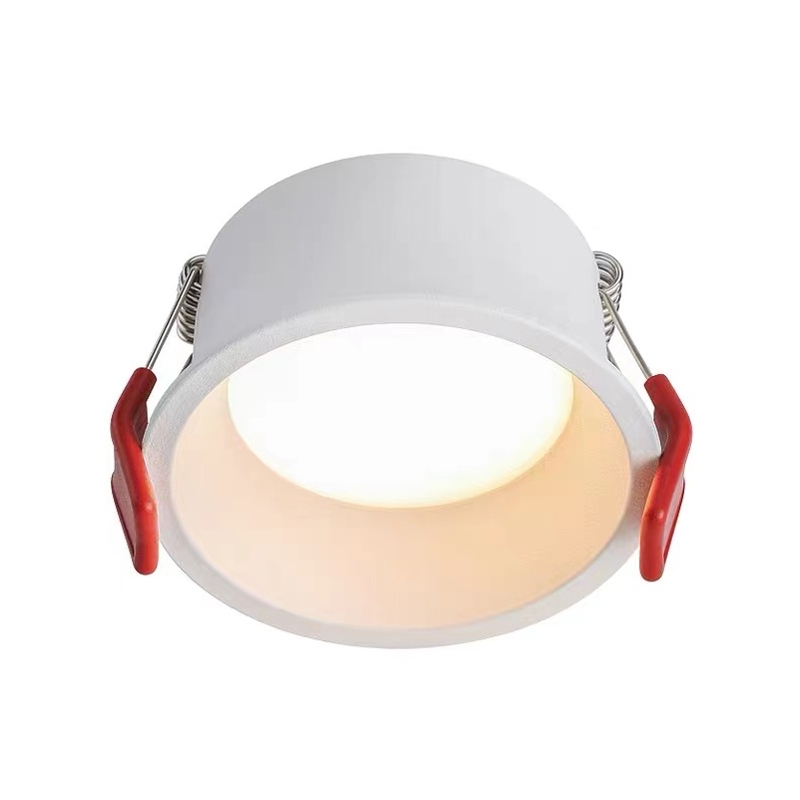

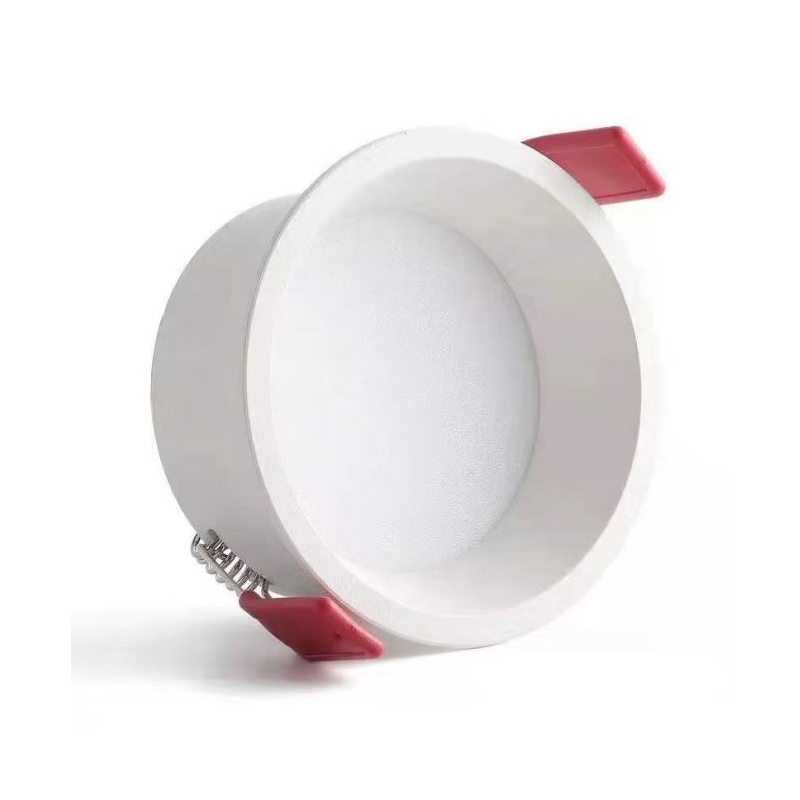

P1 SMD LED Downlight

Wattage : 6W 9W 12W 15W
Driver : Lifud Philips
LED : OSRAM
Voltage :AC 220-240V  AC100-277V
Lumen efficiency : 100LM/W
Color Temp. 2700K 3000K 3500K 4000K 5000K or Customized
CRI : >80Ra  >90Ra
Housing material :  Die-cast Aluminum
Dimmable : ON/OFF / Triac Dim/ 0-10V Dim/ DALI Dim

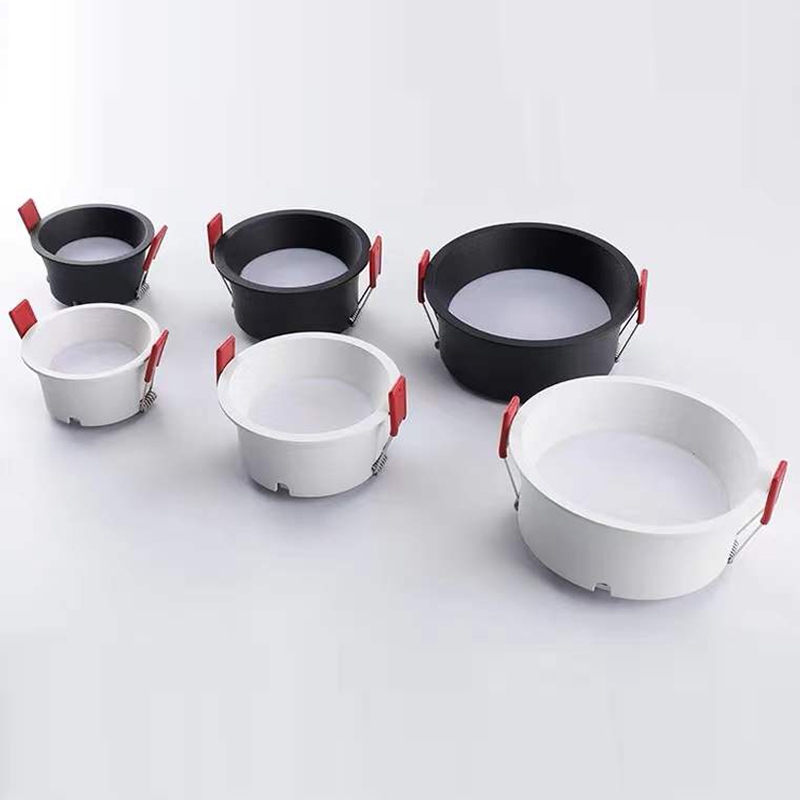

Housing color: Matt White, Matt Black,
Lamp Certificates: CE ROSH SAA
Warranty : 5 Years
Delivery time : 3-4 days for sampes ,7-15 days for bulky orders

    Features:

    1 Opal diffuser glare free design ,Spread a very homogenous light

    2 Direct replacement for compact fluorescent lamp downlights

    3 Energy savings of up to 60 % compared to luminaires that use CFL

    4 Adopt aluminum alloy as material die-casting process , high-end and gorgeous

    5 Low UGR < 19

    6 High transmission PMMA Cover

    7 Medium useful life > 50,000 hours (L80B50) at ambient temperature of 25 ºC

    8 Working environment temperature: -20oc ~ +45oc.

    9 Dimming options : Triac  0/ 1-10V

    10 IP Rating : IP44

    Model Number

    Input voltage(V)

    Power (w)

    LED Chip

    Luminous flux (lm)  (±5%)

    Beam angle(o)

    CCT (K)

    CRI

    Size (mm)

    Cutout(mm)

    OP-TLP6W P1

    AC220V-240V

    6W

    OSRAM

    600LM

    90

    2700K 3000K 4000K 5000K 6000K

    80+

    ɸ83*H43

     ø75

    OP-TLP9W P1

    AC220V-240V

    9W

    OSRAM

    900LM

    90

    2700K 3000K 4000K 5000K 6000K

    80+

    ɸ103*H50

     ø95

    OP-TLP12W P1

    AC220V-240V

    12W

    OSRAM

    1200LM

    90

    2700K 3000K 4000K 5000K 6000K

    80+

    ɸ133*H55

     ø120

    OP-TLP15W P1

    AC220V-240V

    15W

    OSRAM

    1500LM

    90

    2700K 3000K 4000K 5000K 6000K

    80+

    ɸ133*H55

     ø120
