  • P1 SMD LED Downlight
  • P1 SMD LED Downlight
  • P1 SMD LED Downlight
  • P1 SMD LED Downlight
  • P1 SMD LED Downlight
  • P1 SMD LED Downlight

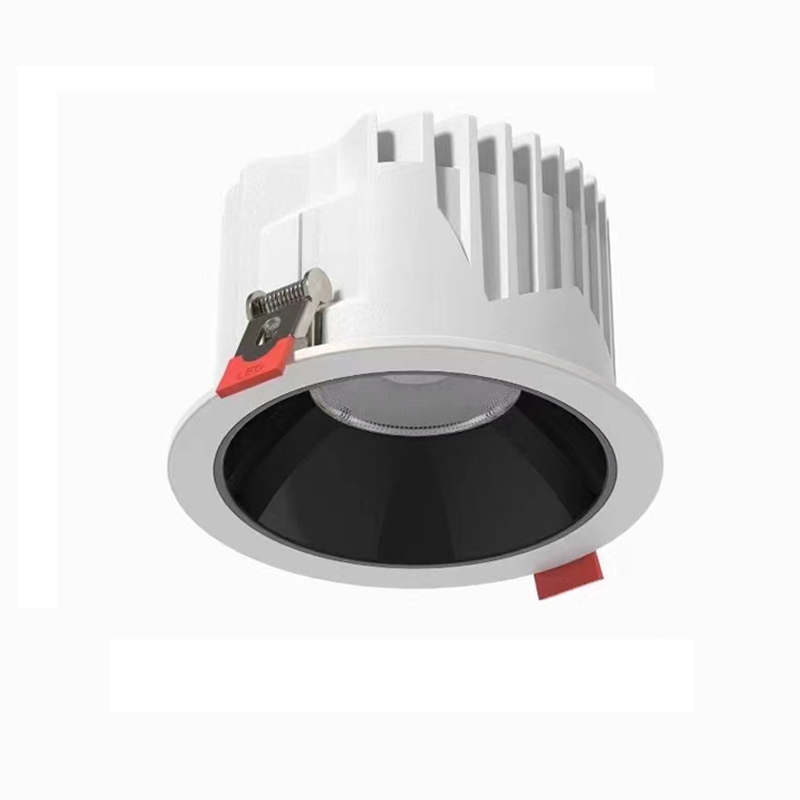

Fixed LED Downlight

Deeply LED Inside with Anti-glare rings  UGR<16
COB or SMD Model Optional with different beam angle

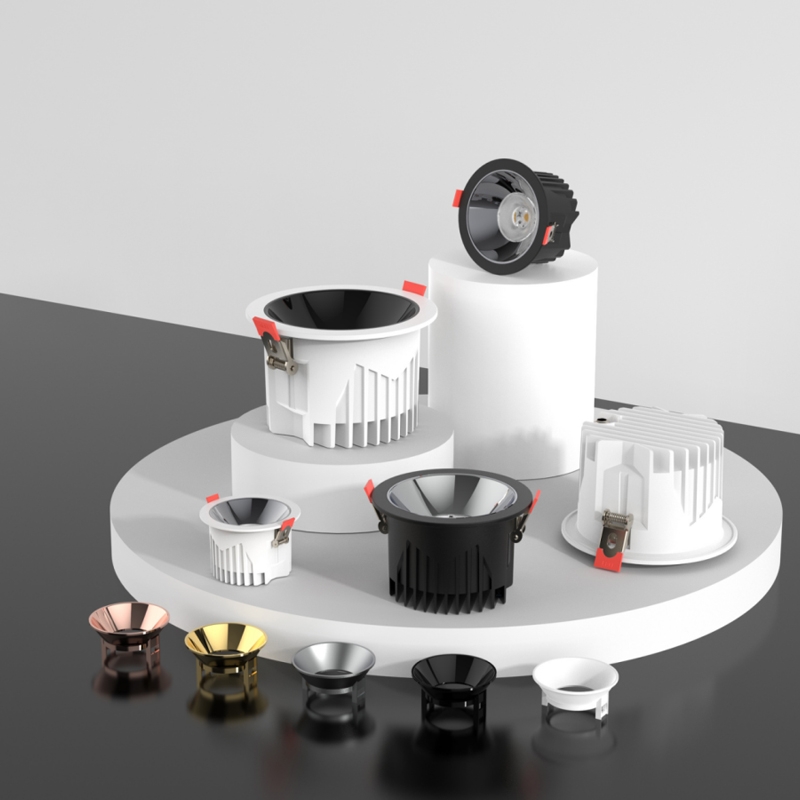

5 colors of reflectors  optional for different application
IP Rating : IP44
Voltage :AC 220-240V  AC100-277V
Lumen efficiency : 100LM/W
Color Temp. 2700K 3000K 3500K 4000K 5000K or Customized
CRI :  >90Ra  >95Ra
Housing material :  Die-cast Aluminum
Dimmable : ON/OFF / Triac Dim/ 0-10V Dim/ DALI Dim
Housing color: Matt White, Matt Black,
Lamp Certificates: CE ROSH SAA
Warranty : 5 Years
Delivery time : 3-4 days for sampes ,7-15 days for bulky orders

    DLF2 downlights range with shielded light source and precise cut off reflectors reduces glare and improves visual comfort. Combined with variety of color plating reflectors meet the requirement of different application integrated aluminum heat sink provides excellent thermal dissipation makes it possible small size for high power wattage , OSRAM & Bridgelux LED allow to produce fixture of endogenous lighting performance and high efficiency natural looking light



    Model No.

    Input voltage(V)

    Power (w)

    LED Chip

    Luminous flux (lm)  (±5%)

    Beam angle(o)

    CCT (K)

    CRI

    Size (mm)

    Cutout(mm)

    OP-DLF9W F2

    AC220-240V

    AC100-277V

    9W

    OSRAM Bridgelux

    100LM/W

    15/24/36

    2700K 3000K

    4000K 5000K

    90+

    Φ85*H55mm

     ø75-80mm

    OP-DLF15W F2

    AC220-240V

    AC100-277V

    15W

    OSRAM Bridgelux

    100LM/W

    15/24/36

    2700K 3000K

    4000K 5000K

    90+

    Φ110*H65mm

     ø95-100mm

    OP-DLF20W F2

    AC220-240V

    AC100-277V

    20W

    OSRAM Bridgelux

    100LM/W

    15/24/36

    2700K 3000K

    4000K 5000K

    90+

    Φ140*H75mm

     ø120-125mm

    OP-DLF30W F2

    AC220-240V

    AC100-277V

    30W

    OSRAM Bridgelux

    100LM/W

    15/24/36

    2700K 3000K

    4000K 5000K

    90+

    Φ165*H85mm

     ø140-145mm

    OP-DLF40W F2

    AC220-240V

    AC100-277V

    40W

    OSRAM Bridgelux

    100LM/W

    15/24/36

    2700K 3000K

    4000K 5000K

    90+

    Φ185*H95mm

     ø160-165mm

    OP-DLF50W F2

    AC220-240V

    AC100-277V

    50W

    OSRAM Bridgelux

    100LM/W

    15/24/36

    2700K 3000K

    4000K 5000K

    90+

    Φ215*H108mm

     ø190-195mm

    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
