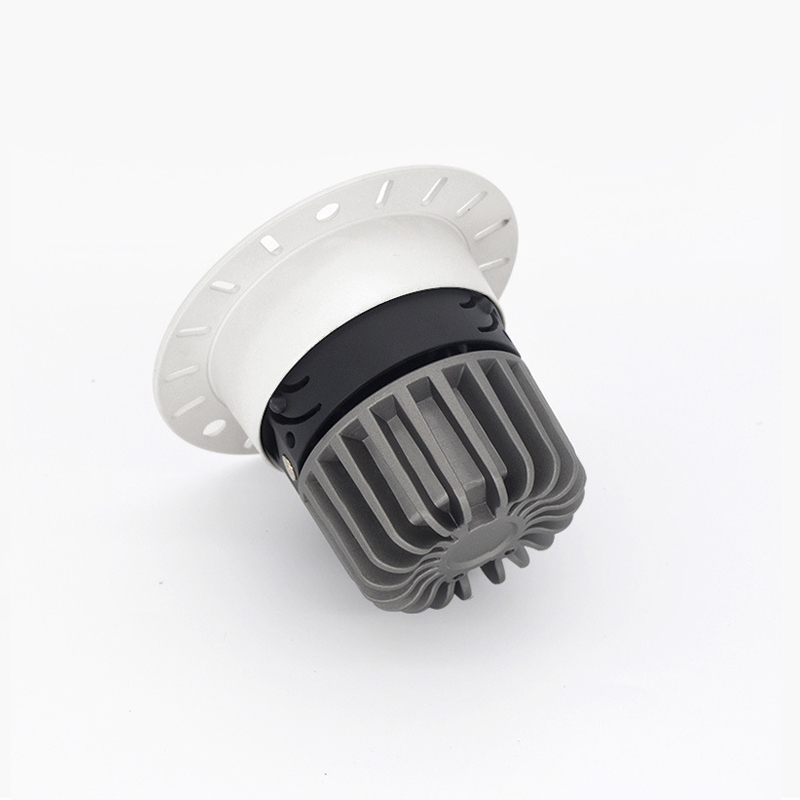

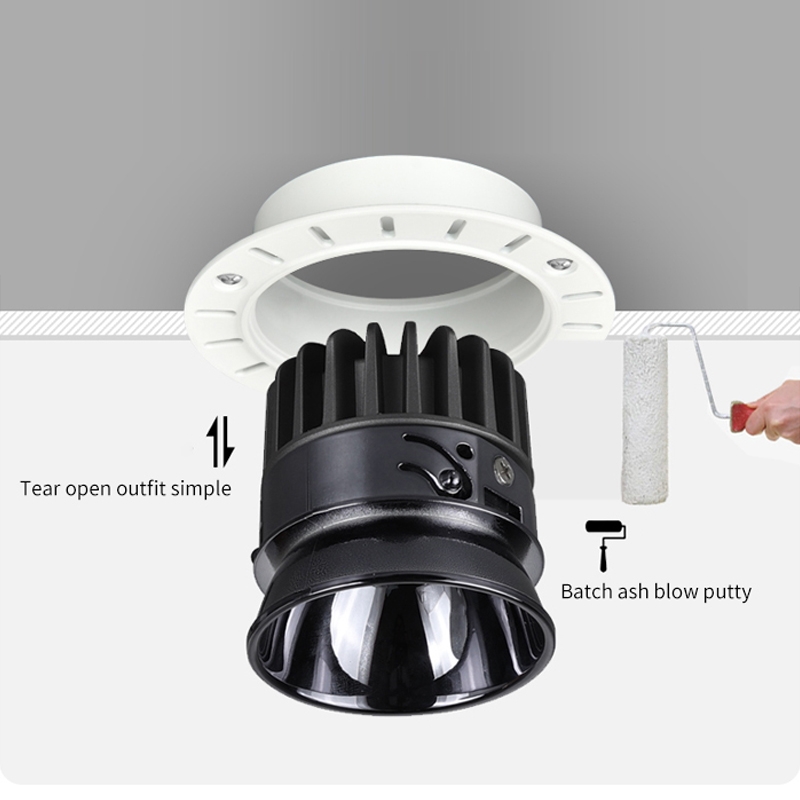

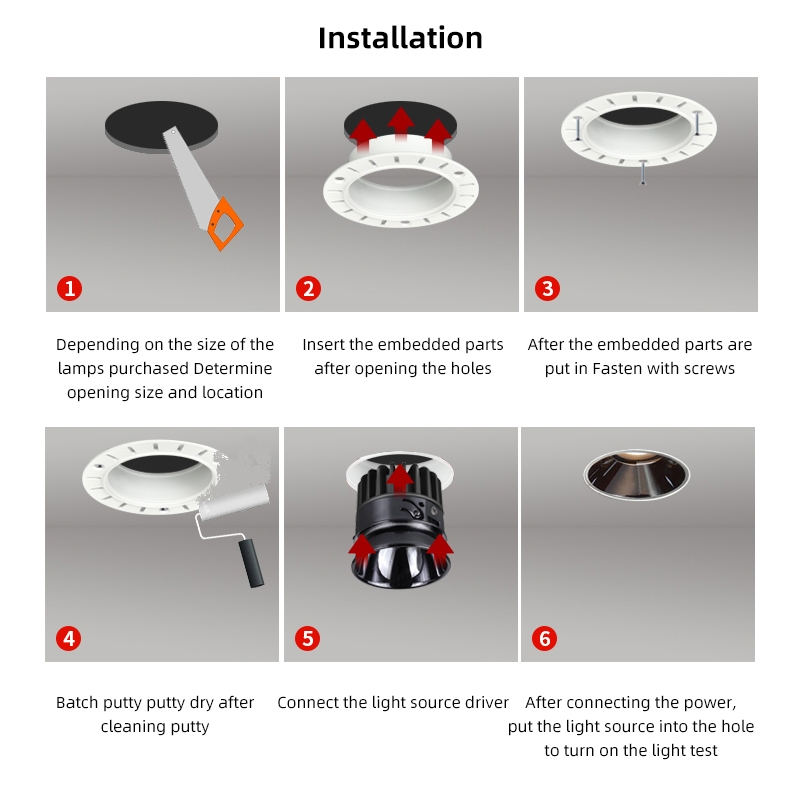

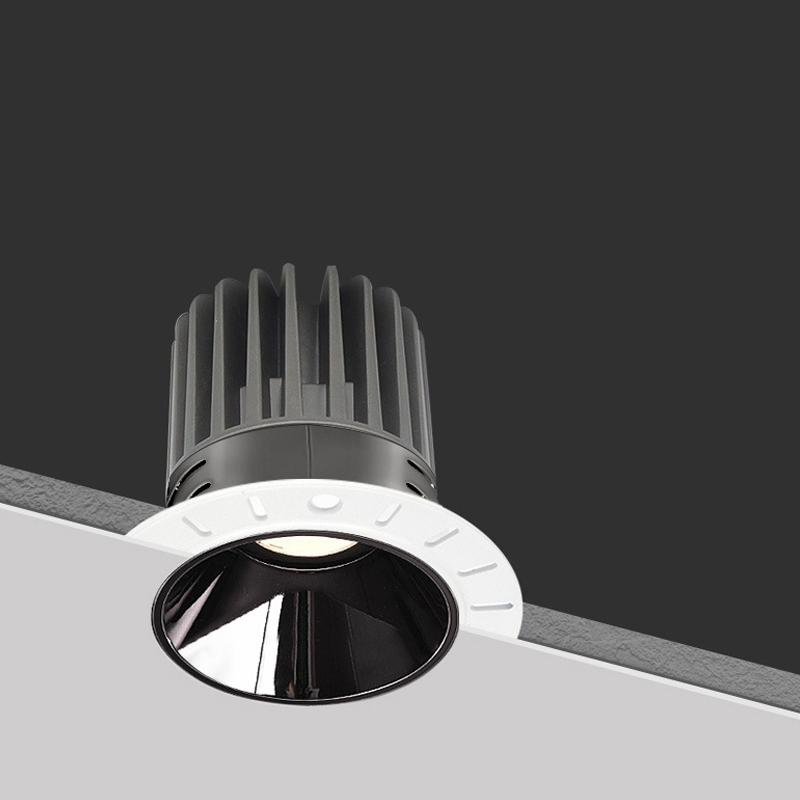

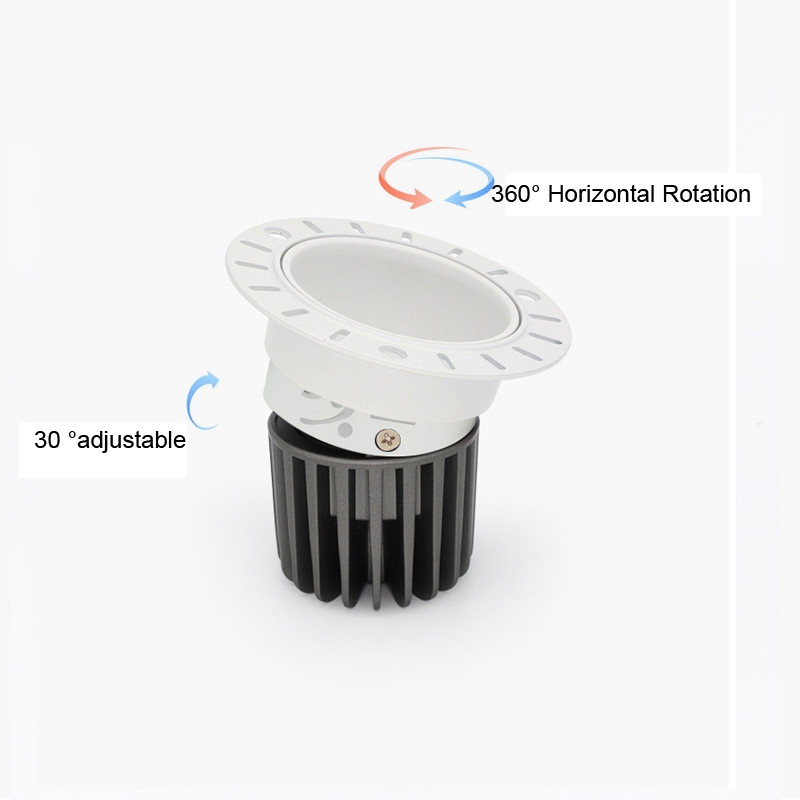

DLH Trimless LED downlight is designed for lasting durability and beauty while providing quality and energy efficient lighting for low to medium ceilings. The COB trimless recessed downlight is an ideal solution for clear and bright lighting in retail, hotels, commercial, and high-end residential settings. Also, it’s suitable for installation at the initial design stage or as part of a wider refurbishment due to the way in which it is fitted. In addition, the Square and Round Trimless downlight can tilt up to 30 degrees and rotate a full 360 degrees to meet you with different lighting direction.



Model No.	Input voltage(V)	Power (w)	LED Chip	Luminous flux (lm)  (±5%)	Beam angle(o)	CCT (K)	CRI	Size (mm)	Cutout(mm)
OP-DLH07WT H1	AC220-240V	7W	OSRAM Bridgelux	100LM/W	15/24/36 /60(SMD)	2700K 3000K 4000K 5000K	90+	φ81*H69.5mm	Ø55mm
OP-DLH10WT  H1	AC220-240V	10W	OSRAM Bridgelux	100LM/W	15/24/36 /60(SMD)	2700K 3000K 4000K 5000K	90+	114*71H102mm	Ø75mm
OP-DLH15WT H1	AC220-240V	15W	OSRAM Bridgelux	100LM/W	15/24/36 /60(SMD)	2700K 3000K 4000K 5000K	90+	φ101*H102mm	Ø75mm
OP-DLH20WT H1	AC220-240V	20W	OSRAM Bridgelux	100LM/W	15/24/36 /60(SMD)	2700K 3000K 4000K 5000K	90+	φ130*H86.5 mm	Ø95mm
